Knipex forged wire rope cutters feature a precision-polished head and robust 190mm design, delivering clean, efficient cuts on cables up to 7mm in diameter.

Description

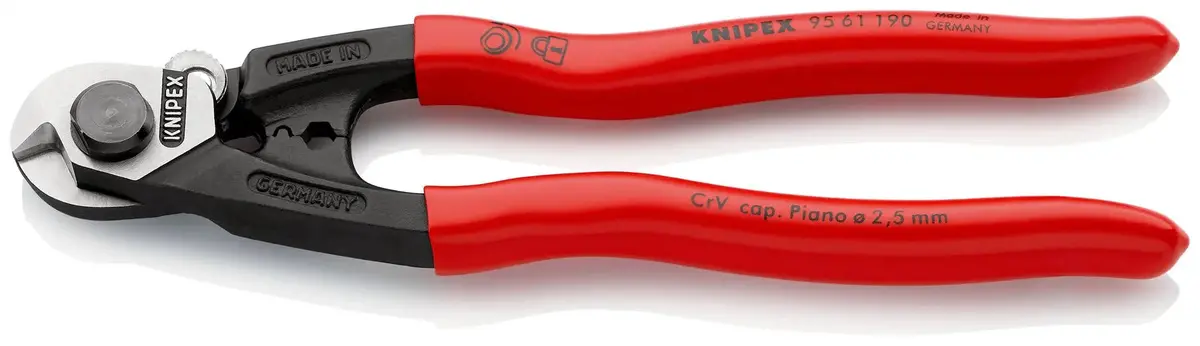

KNIPEX Wire Rope Cutters Forged Cutting Pliers Polished Head up to 7mm Capacity 190mm 95 61 190
95 61 190 Wire Rope Cutter
With two crimping dies for end caps on Bowden cable sheaths and end ferrules for traction cables. Comfortable work thanks to handy, slim design and internal opening spring. Bolted joint for precise blade guidance, re-adjustable. High leverage for reduced effort. Cutting edge hardness approx. 64 HRC.

Cutting capacity copper cable, multiple-stranded: 10 mm²

Cutting capacity copper cable, multiple-stranded (diameter): Ø 7.0 mm

Cutting capacity copper cable, fine-stranded (diameter): Ø 6.0 mm

Cutting capacities wire rope (diameter): Ø 5.0 mm

Cutting capacities medium hard wire (diameter): Ø 4.0 mm

Cutting capacities piano wire (diameter): Ø 2.5 mm

Cutting capacites iron (diameter): Ø 4 mm

AWG: 8

Technical Information:

• bolted joint for precise blade guidance, re-adjustable
• Comfortable work thanks to handy, slim design and internal opening spring
• cutting edge hardness approx. 64 HRC
• High leverage for reduced effort
• with two crimping dies for end caps on Bowden cable sheaths and end ferrules for traction cables

Downloadable Files:

• Data Sheet: View Here
