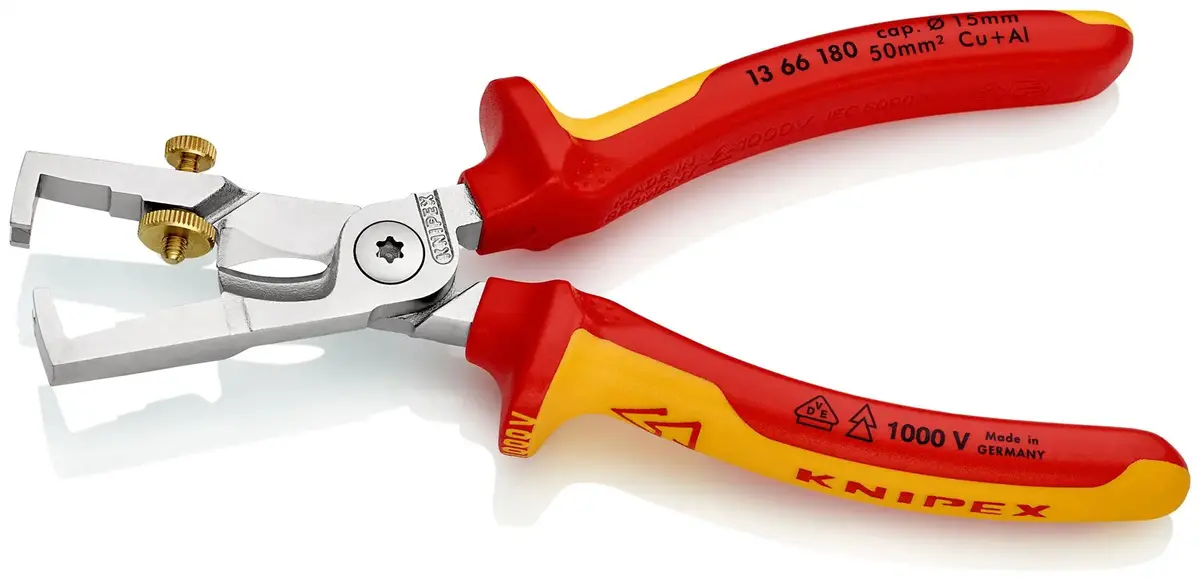

Knipex Strix 180 mm insulated insulation stripper featuring built-in cable shears, chrome-plated jaws, and ergonomic multi-component grips — VDE certified for safety up to 1000 V

Description

KNIPEX StriX Insulation Strippers with Cable Shears 180mm VDE Chrome Multi Component Grips 13 66 180 SB
13 66 180 SB KNIPEX StriX®
Wire stripper with cable shears – two essential electrical installations tools in one pair of pliers. Integrated cable shears for the clean cutting of Cu- and Al-cables without crushing. Cutting edges additionally induction-hardened, cutting edge hardness approx. 57 HRC. Universal adjustment of the stripping blades by means of a knurled screw. Slim dimensions for easy access. Stripping of single-, multi- and fine stranded conductors with plastic or rubber insulation up to Ø 5 mm or 10 mm² cross-section. Graduated jaw provides a visual orientation aid when stripping wire in standard lengths (11 mm and 16 mm). self-service card/blister.

Technical Information:

• cutting edges additionally induction-hardened, cutting edge hardness approx. 57 HRC
• Graduated jaw provides a visual orientation aid when stripping wire in standard lengths (11 mm and 16 mm)
• Integrated cable shears for the clean cutting of Cu- and Al-cables without crushing up to Ø 15 mm (5 x 2,5 mm²)
• slim dimensions for easy access
• Stripping of single-, multi- and fine stranded conductors with plastic or rubber insulation up to Ø 5 mm or 10 mm² cross-section
• Universal adjustment of the stripping blades by means of a knurled screw

Downloadable Files:

• Data Sheet: View Here
