Description

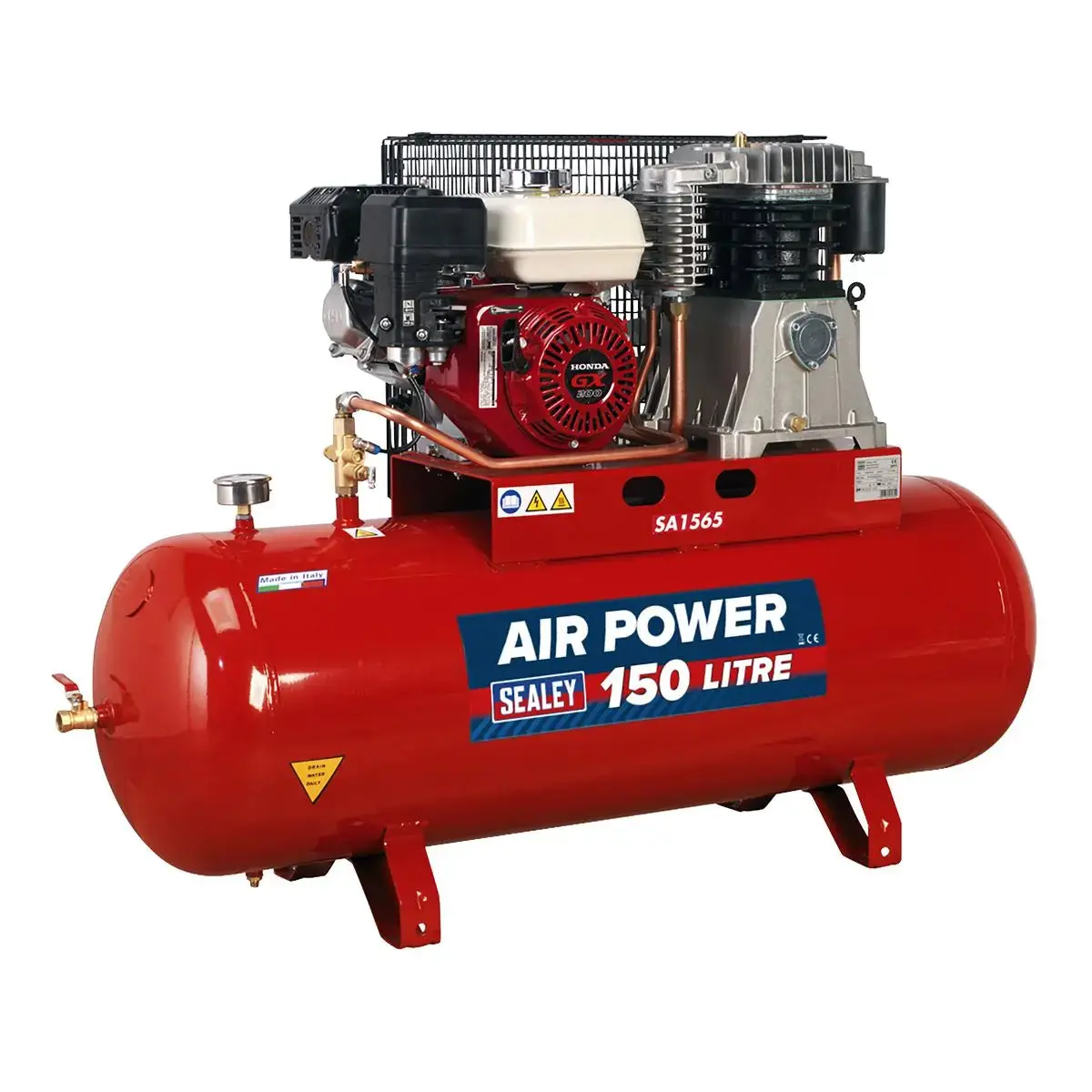

Sealey 150L Belt Drive Air Compressor with Petrol Engine 6.5hp
Air Displacement: 20.9cfm(591L/min).
Maximum Free Air Delivery: 15.2cfm(430L/min).
Maximum Pressure: 145psi(10bar).
Static compressor with Honda GX200 6.5hp unit coupled to heavy-duty, 2-stage twin piston, cast iron pump.
Pump has heavy-duty full cast cylinders, capped by alloy heads for improved heat dissipation and long-life.
Heavy-duty drive guard protects belt and flywheel that is designed to also force air over the pump to aid cooling.
Supplied with full CE certification, test certificates and operating/maintenance manual.
Features gauge and air outlet.
Runs on unleaded fuel.
This item is heavy. Extra assistance must be provided at the delivery point to help its safe delivery.
Specification:
- Model No SA1565
- Air Displacement cfm(L/min): 20.9(591)
- Brand: Sealey
- Maximum Free Air Delivery cfm(L/min): 15.2(430)
- Maximum Pressure: 145psi(10bar)
- Motor Output: 6.5hp
- Motor Type: Honda GX200 Petrol
- Nett Weight: 103kg
- Noise Level: 97dB(A)
- Oil Capacity: 1.2L
- Outlet: 1/2″BSP Female Tap
- Receiver Capacity: 150L
- Size (W x D x H): 1360 x 540 x 1110mm
Product Guarantee: 1 Year
Catalogue Page: Page 1185
Downloadable Files:
- Instructions: View Here
- Material Safety Data Sheet: View Here
- Parts Diagram: View Here
