Description

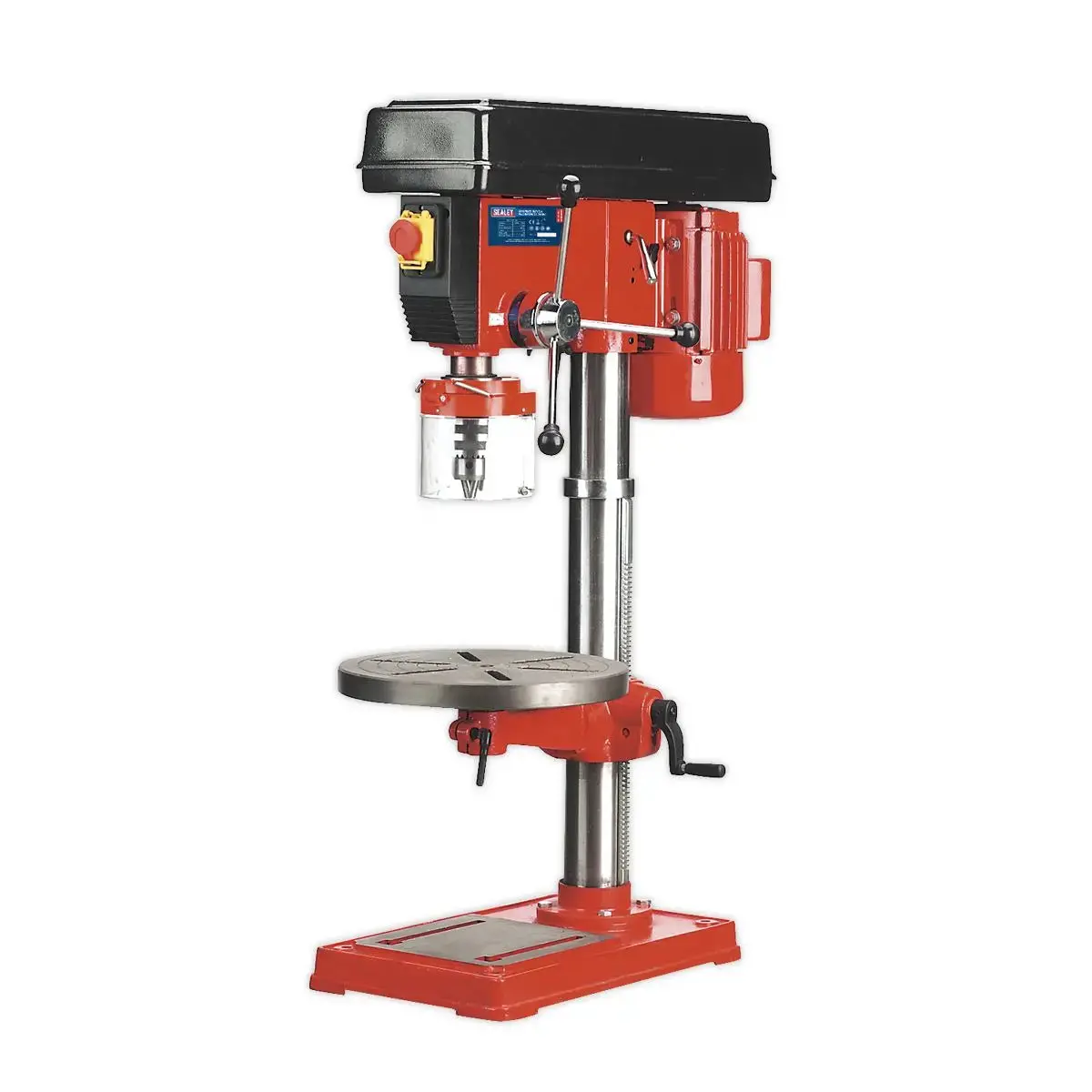

Sealey Bench Mounting Pillar Drill 16-Speed 750W/230V
One of a comprehensive range of bench pillar drills to suit light industrial, agricultural and woodworking applications.
Meets Safety of Machinery (Safety) Directives 1992 (and amendments).
Safety devices fitted include a no-voltage release switch, allowing insurance company approval for use in educational establishments.
Model No. GDM50B and up have Morse taper spindle housings for taking taper shank drill bits.
All models offer multiple speed drives and access to drive belts is denied during operation by mechanical protection.
All drills are fitted with rack and pinion feed shafts with preset depth control for repetitive work.
20mm(3/4″) Capacity chuck No. MT3.
Height: 1085mm.
Spindle Centre to Column: 216mm.
Motor Power: 550W, Input Power: 750W.
This item is heavy. Extra assistance must be provided at the delivery point to help its safe delivery.
Specification:
- Model No GDM180B
- Base Size: 520 x 320mm
- Brand: Sealey
- Collar Diameter: 75mm
- Column Diameter: 80mm
- Drilling Capacity (Chuck Size): 20mm
- Maximum Distance Spindle to Base: 685mm
- Maximum Distance Spindle to Table: 495mm
- Motor Power (Start): 550W(750W)
- Nett Weight: 70kg
- Number of Speeds: 16
- Overall Height: 1085mm
- Speed Range: 120-3000rpm
- Spindle Centre to Column: 216mm
- Spindle Nose Taper: MT3
- Spindle Travel: 80mm
- Supply: 230V
- Swing: 432mm
- Working Base Surface Size: 240 x 280mm
- Working Table Surface Size: Ø355mm
Product Guarantee: 1 Year
Catalogue Page: Page 906
Downloadable Files:
- Instructions: View Here
- Parts Diagram: View Here
