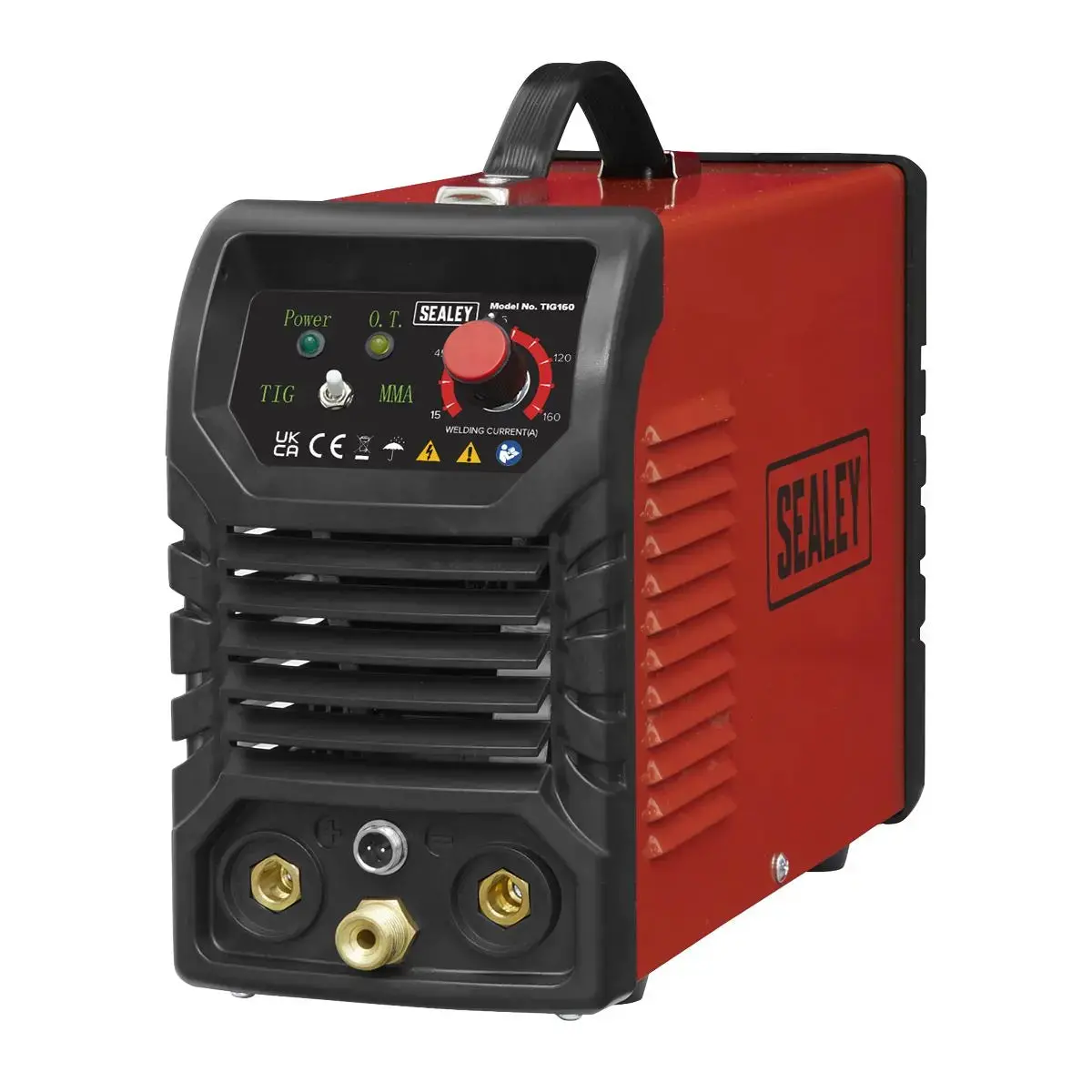

Sealey 160A TIG/MMA Inverter Welder – 230V Portable Arc & Tungsten Welding Machine

Description

Sealey TIG & MMA/ARC Inverter Welder 160A/230V

IGBT INVERTER TECHNOLOGY – IGBT Inverter fan-cooled DC power supply for TIG and MMA/ARC welding applications up to 160A.

POWDER COATED – Outer case manufactured from pressed steel with a powder coated finish for extra corrosion resistance.

HIGHLY PORTABLE – Portable with a weight of only 6.1kg, allowing the welder to be taken to the job at hand making it ideal for the mobile technician.

FEATURING – Features hot start, anti-stick, forced air cooling, thermal cut-out protection and quick release switch on the torch for control of gas, saving on consumption.

LIFT START – Suitable for MMA/ARC welding using the lift start method for better weld quality.

SUPPLIED WITH – Supplied with TIG and MMA/ARC Accessories.

DUTY CYCLE – TIG 60% @ 160A, MMA/ARC 60% @ 160A.
Specification:

• Model No TIG160
• Brand: Sealey
• Nett Weight: 6.1kg
• Power Output: 10-160A

({IF[“Duty Cycle: TIG:60% @ 160A100% @ 124AMMA:60% @ 160A100% @120A”!=””]})

• Duty Cycle: TIG:60% @ 160A100% @ 124AMMA:60% @ 160A100% @120A

({ENDIF})

• Electrode Capacity: 1.6-3.2mm
• Absorbed Power: 3.8kW
• Supply:* 230V
• Protection: IP21S
• Weight: 6.1kg
• Note: * To achieve maximum power 16A supply may be required.
• Electrode Holder (Included): Yes
• TIG Welding Torch (Included): Yes
• Note: *To achieve maximum power a 16A supply may be required.

Product Guarantee: 1 Year
Catalogue Page: Page 996
Downloadable Files:

• Instructions: View Here
• Parts Diagram: View Here
