Description

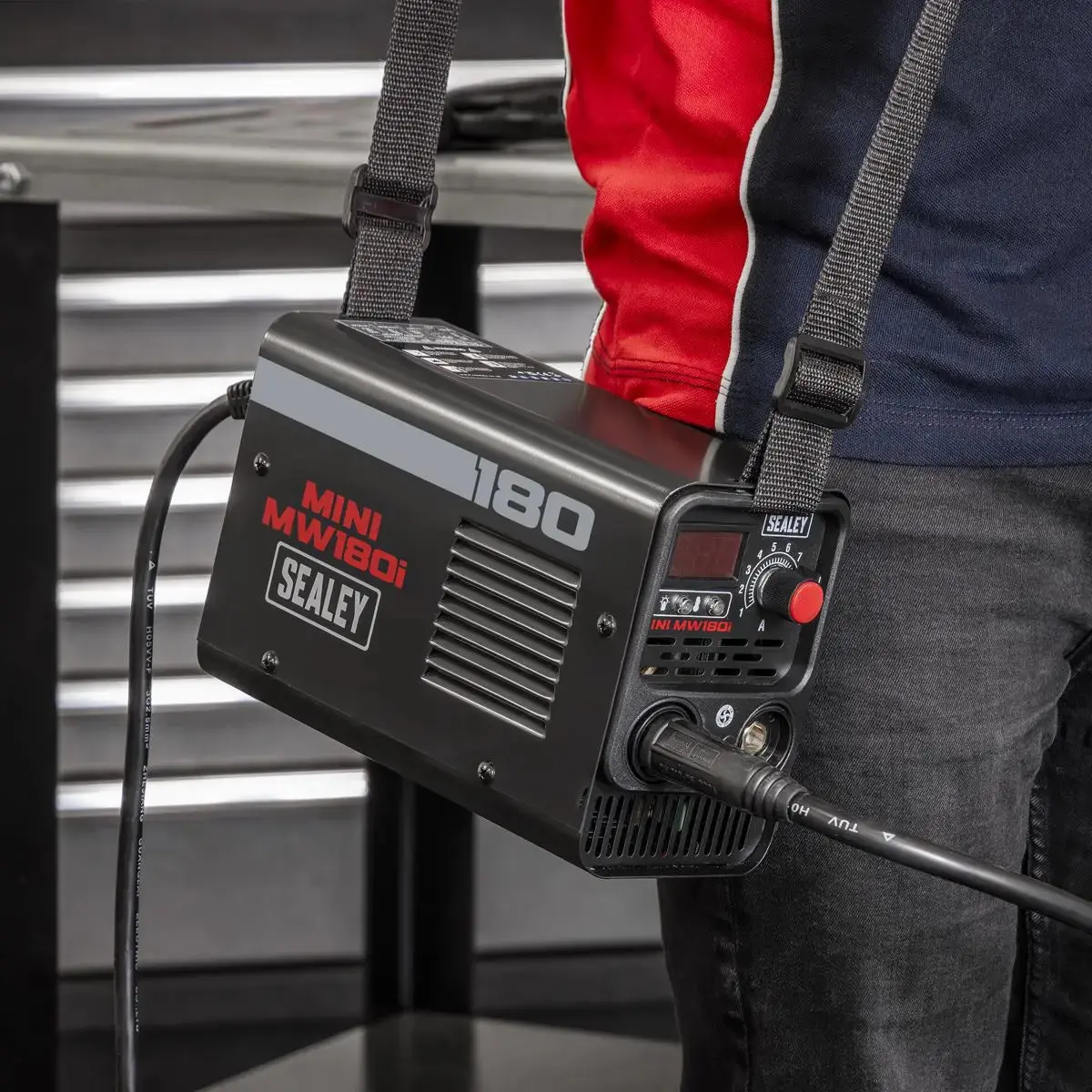

Sealey Inverter Welder 180A/230V
ULTRA COMPACT AND LIGHTWEIGHT – Ultra-compact and lightweight unit weighing just 4kg approx.
IDEAL FOR A MOBILE TECHNICIAN – Portability allows the welder to be taken to the job at hand, ideal for mobile technicians.
SUITABLE FOR MOST ARC/MMA WELDING RODS – Unit can ARC/MMA weld a variety of rods including rutile, basic and stainless from Ø1.6mm up to Ø5mm.
USER FRIENDLY FUNCTIONS – Features LED display, with thermal cut-out protection, anti-stick, arc force and hot start functions.
SUPPLIED WITH – Supplied with 1.6m 25mm² cable with electrode holder and a 1.4m 25mm² earth clamp and cable, both with 10-25 dinse connectors.
Specification:
- Model No MINIMW180i
- Brand: Sealey
- Nett Weight: 4.1kg
- Welding Current: 20-180A
- Duty Cycle: 60% @ 180A, 100% @ 140A
- Absorbed Power: 7.8kW
- Electrode Capacity: 1.6-5.0mm
- Supply: 230V – 16A*
- Plug Type: Bare Wire
- Power Supply Cable Length: 2m
- IP Rating: IP21S
- Weight: 4.7kg
- *Note To achieve maximum power a 16A supply may be required.
Product Guarantee: 1 Year
Catalogue Page: Page 994
Downloadable Files:
- Instructions: View Here
- Parts Diagram: View Here
