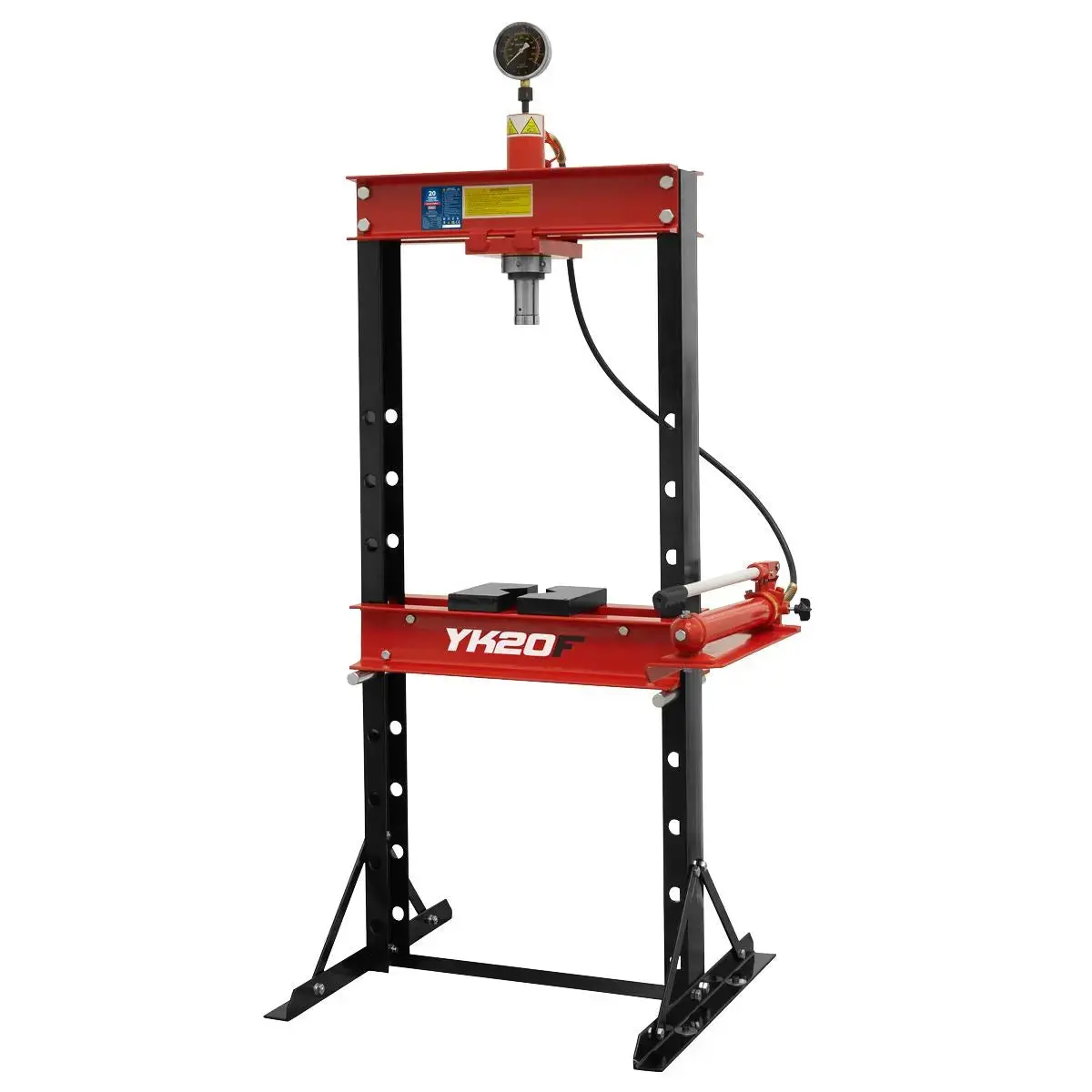

Sealey Hydraulic Floor Type Press 20 Tonne
Steel frame construction with side mounted hydraulic pump unit.
Sliding hydraulic ram assembly giving 403mm of lateral travel for off-centre pressing applications.
Fitted with ram pressure gauge.
Supplied with flat pressing plate/V-blocks.
This item is heavy. Extra assistance must be provided at the delivery point to help its safe delivery.
Specification:
- Model No YK20F
- Bench or Floor Mounting: Floor Mounted
- Brand: Sealey
- Capacity: 20 Tonne
- Gauge Included: Yes
- Lateral Ram Travel: 403mm
- Maximum Height – Ram to Table: 1018mm
- Minimum Height – Ram to Table: 58mm
- Nett Weight: 92.5KG
- Operating Table Width: 545mm
- Optional Accessories: YKPP8 – Press Pin Set
- Overall Height: 1796mm
- Ram Diameter: Ø48mm
- Ram Stroke: 185mm
- Table Aperture: 100mm
- Type: Hydraulic
- Type: Hydraulic
- Working Table Width: 545mm
Product Guarantee: 1 Year
Catalogue Page: Page 897
Downloadable Files:
- Instructions: View Here
- Material Safety Data Sheet: View Here
- Parts Diagram: View Here
