Sealey 200A MIG Welder – 230V Professional Model with Binzel® Euro Torch

Description

SEALEY SUPERMIG® – Compact, gas/gasless welder with 200A maximum performance.

HIGH OUTPUT TRANSFORMER – Heavy-duty high output transformer, with 30-200A welding current.

FORCED AIR COOLING – To maximise duty cycle performance.

BOTH GAS/GASLESS OPERATION – Unit is supplied set up in gas mode but can easily be switched to gasless mode by a simple change of polarity. Use in gasless mode will require spool of flux cored wire.

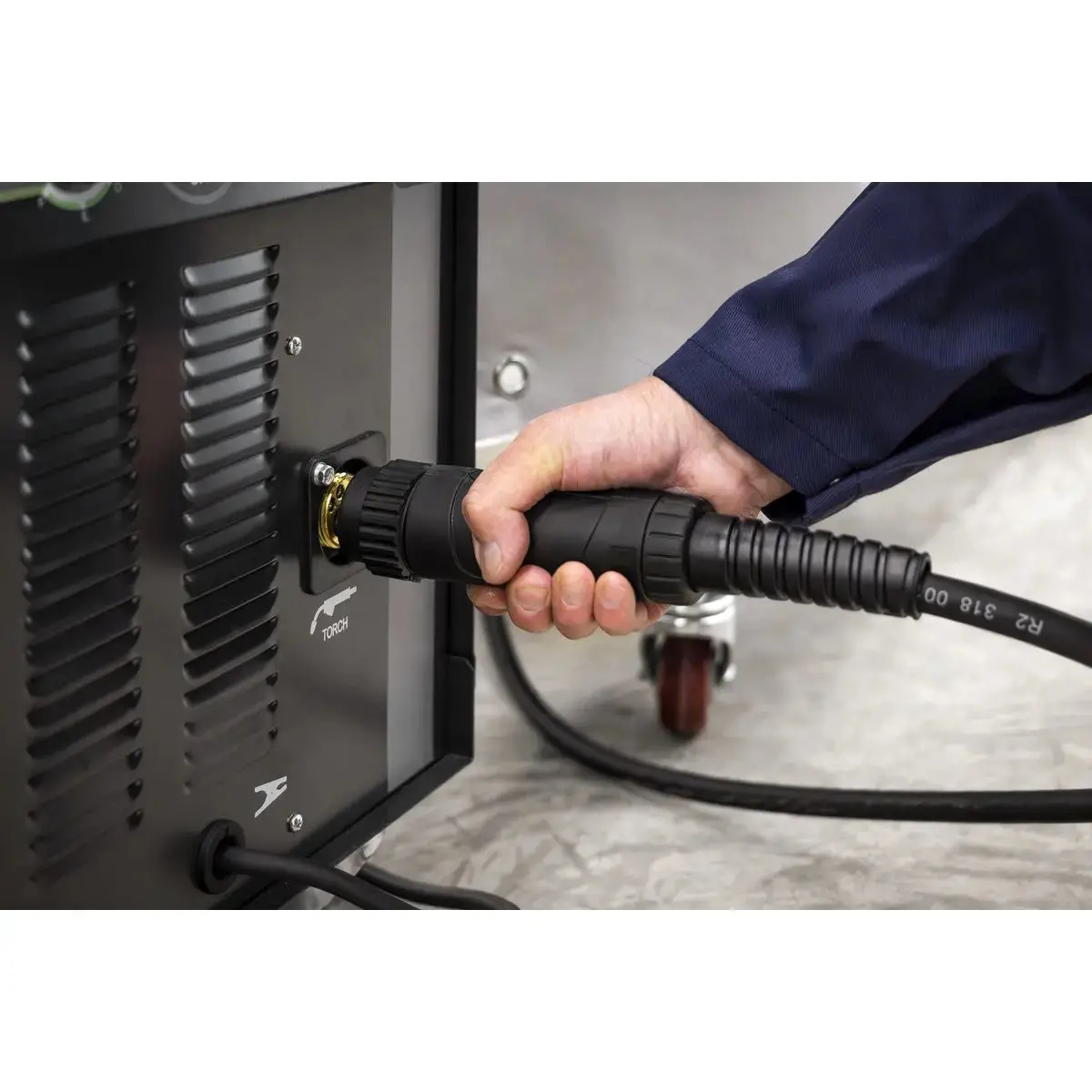

EURO NON-LIVE TORCH – Supplied with 3m Binzel® non-live Euro torch reducing accidental arcing and is comfortable in the hand, ensuring a steadier weld bead.

ACCESSORIES INCLUDED – Includes industrial gas regulator 2.4m earth cable with clamp, 0.6mm contact tip, 1.4m gas hose, hose clamp (x2).

3 YEAR GUARANTEE*.
Specification:

• Model No SUPERMIG200
• Brand: Sealey
• Nett Weight: 37.7kg
• Welding Current: 30-200A
• Wire Capacity 5-15kg
• Duty Cycle: 100% @ 62A, 60% @ 80A, 15% @ 160A
• Cooling System: Forced Air
• Spot Welding Timer: Yes
• Gas Type: CO2, Argon, CO2/Argon Mix

({IF[“Torch: 3m Euro Non-Live – BINZEL® Ergo 15.2″!=””]})

• Torch: 3m Euro Non-Live – BINZEL® Ergo 15.2

({ENDIF})({IF[“Supply: 230V-16A**To achieve maximum power a 32A supply may be required.”!=””]})

• Supply: 230V-16A**To achieve maximum power a 32A supply may be required.

({ENDIF})

• Absorbed Power: 7.4kW
• Case Size: Large
• Weight:

Product Guarantee: 3 Years
Catalogue Page: Page 993
Downloadable Files:

• Instructions: View Here
• Parts Diagram: View Here
