Description

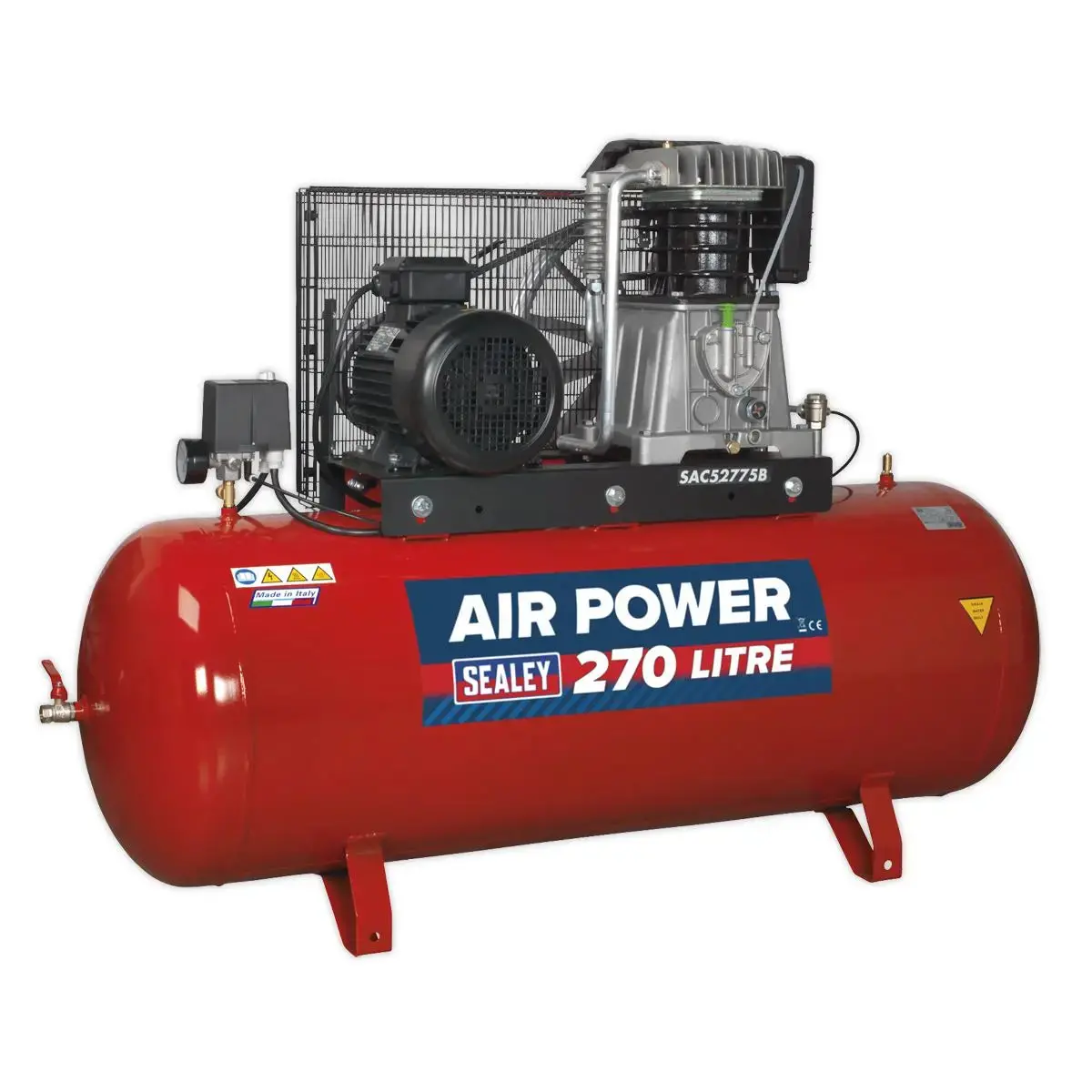

Sealey 270L Belt Drive Air Compressor with Cast Cylinders 7.5hp 2-Stage
Air Displacement: 29.7cfm(841L/min).
Maximum Free Air Delivery: 21.5cfm(609L/min).
Maximum Pressure: 145psi(10bar).
Heavy-duty 3-phase compressor suitable for the professional workshop.
2-Stage pump system coupled with a 7.5hp motor maximizes performance to keep running costs low compared to single stage, single phase model.
Pump features heavy-duty full cast cylinders, capped by an alloy head for improved heat dissipation and long-life.
Heavy-duty drive guards protect belt and flywheel that is designed to force air over the pump to aid cooling.
Supplied with full CE certification, test certificates and operating/maintenance manual.
This item is heavy. Extra assistance must be provided at the delivery point to help its safe delivery.
Specification:
- Model No SAC52775B
- Air Displacement cfm(L/min): 29.7(841)
- Brand: Sealey
- Maximum Free Air Delivery cfm(L/min): 21.5(609)
- Maximum Pressure: 145psi(10bar)
- Minimum Rated Supply: 32A
- Motor Output: 7.5hp
- Nett Weight: 143kg
- Oil Capacity: 1.57L
- Outlet: 1/2″BSP Female Tap
- Phase: 3ph
- Receiver Capacity: 270L
- Size (W x D x H): 1550 x 510 x 1070mm
- Speed: 1280rpm
- Supply: 400V/32A
Product Guarantee: 1 Year
Catalogue Page: Page 1182
Downloadable Files:
- Instructions: View Here
- Material Safety Data Sheet: View Here
- Parts Diagram: View Here
