Description

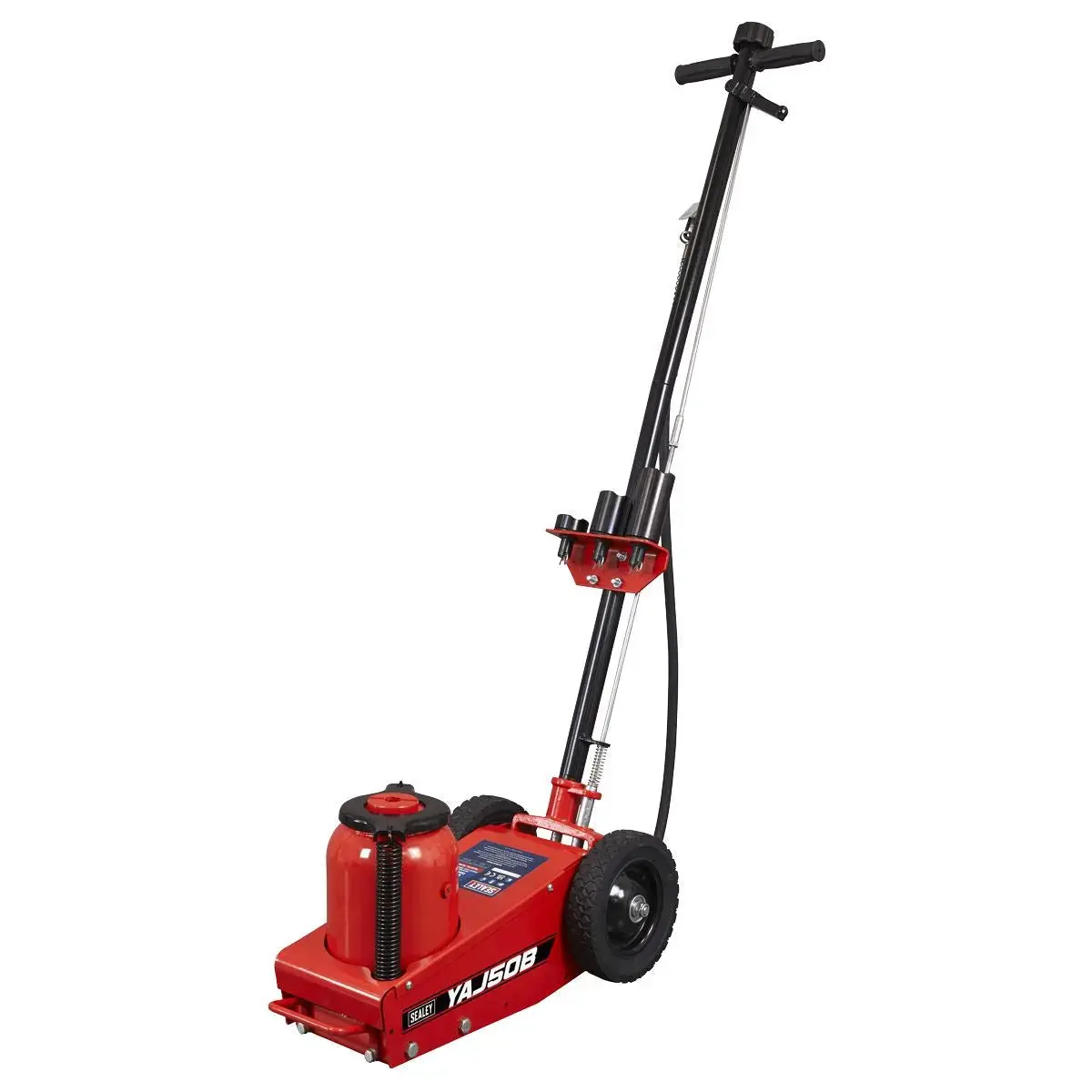

Sealey Air Operated Single Stage Trolley Jack 50 Tonne
HEAVY-DUTY HYDRAULICS – Powerful and reliable, ideal for workshop or roadside use.
AIR OPERATED – Takes the effort out of lifting heavy plant, tractors and commercial vehicles.
SAFETY LOCK – Dead man’s control and sectional pump handle for manual operation, when air is unavailable.
JACKING POINT EXTENSIONS – Supplied with 20/60/90mm extensions to close the gap between the saddle of the jack and the jacking point.
LOWERING SYSTEM – Automatic dual spring controlled.
OVERLOAD SAFETY VALVE – Safety valve fitted to prevent damage to the unit.
Specification:
- Model No YAJ50B
- Air Consumption: 9.5cfm
- Brand: Sealey
- Capacity: 50 Tonne
- Extensions: 20/60/90mm
- Maximum Height (inc. Extension)/Capacity-Stage 1 (mm/tonne): 555mm
- Maximum Height (inc. Extension)/Capacity-Stage 2 (mm/tonne): 595mm
- Maximum Height (inc. Extension)/Capacity-Stage 3 (mm/tonne): 625mm
- Minimum Saddle Height: 288mm
- Nett Weight: 57kg
- Piston Stroke: 155mm
- Screw Extension: 121mm
- Working Pressure: 109-123psi
Product Guarantee: 1 Year
Catalogue Page: Page 846
Downloadable Files:
- Instructions: View Here
- Parts Diagram: View Here
