Description

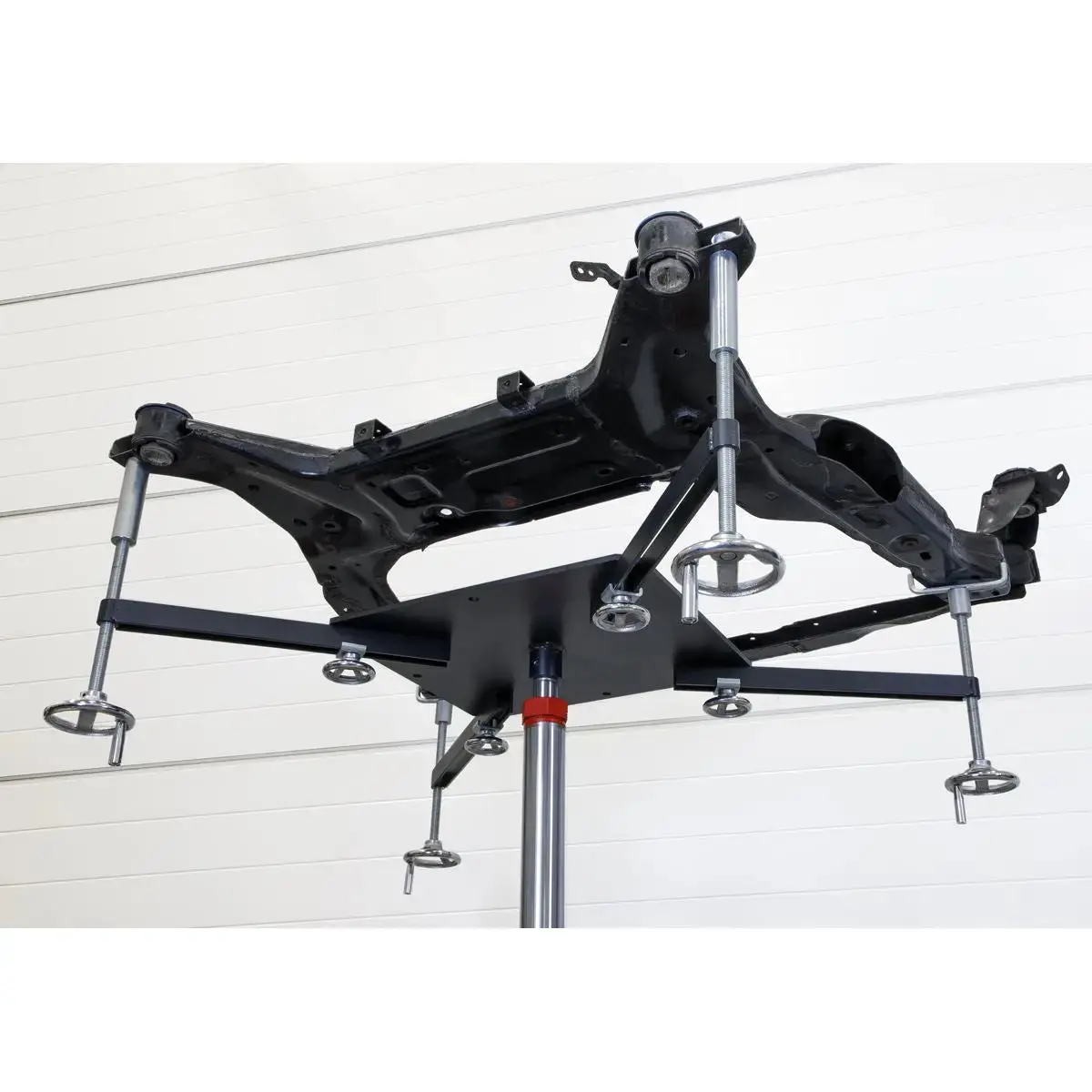

Sealey Subframe Cradle and 500kg Transmission Jack Combo
TELESCOPIC RAM – a two-stage ram reduces the clearance.
HIGH SPEED LIFT – quick lift, when unladen, reducing the foot pumps required to meet the load. But when laden slows to give control and accuracy.
FOOT PEDAL OPERATION – keeping hands free for fixings and adjustments.
SAFE – Spring loaded dead man’s safety release control reduces the risk of inadvertent lowering.
HIGHLY MANOEUVRABLE – large, smooth running castors, make positioning quick and easy.
VERSATILE ADAPTOR – Fully adjustable Subframe/Engine support and supplied with various designs of fittings to suit different applications.
WILL ASSIST – in the removal and fitting of complete engine assemblies, rear axles, gearboxes, fuel tanks, exhaust systems and other awkward loads.
LABOUR SAVING DESIGN – allows many jobs to be carried out by one person.
EASY ASSEMBLY – the adaptor can be fitted and removed from the transmission jack with ease as required.
Specification:
- Model No SFC500COMBO
- Base Size: 1000 x 1000mm
- Brand: Sealey
- Capacity: 500TTJ – 500kg and SFC01 – 450kg
- Fixed/Adjustable Saddle: Adjustable
- Maximum Saddle Height: 1875mm
- Minimum Saddle Height: 890mm
- Nett Weight: 95.5kg
- Optional Accessories: N/A
- Pump Strokes to Maximum Height: N/A
- Ram Extensions: 2
- Saddle Adjustment – Left-to-Right: 65mm
- Saddle Tilt – Backward: 22°
- Saddle Tilt – Forward: 28°
Product Guarantee: 1 Year
Catalogue Page: Page 882
Downloadable Files:
- Material Safety Data Sheet: View Here
