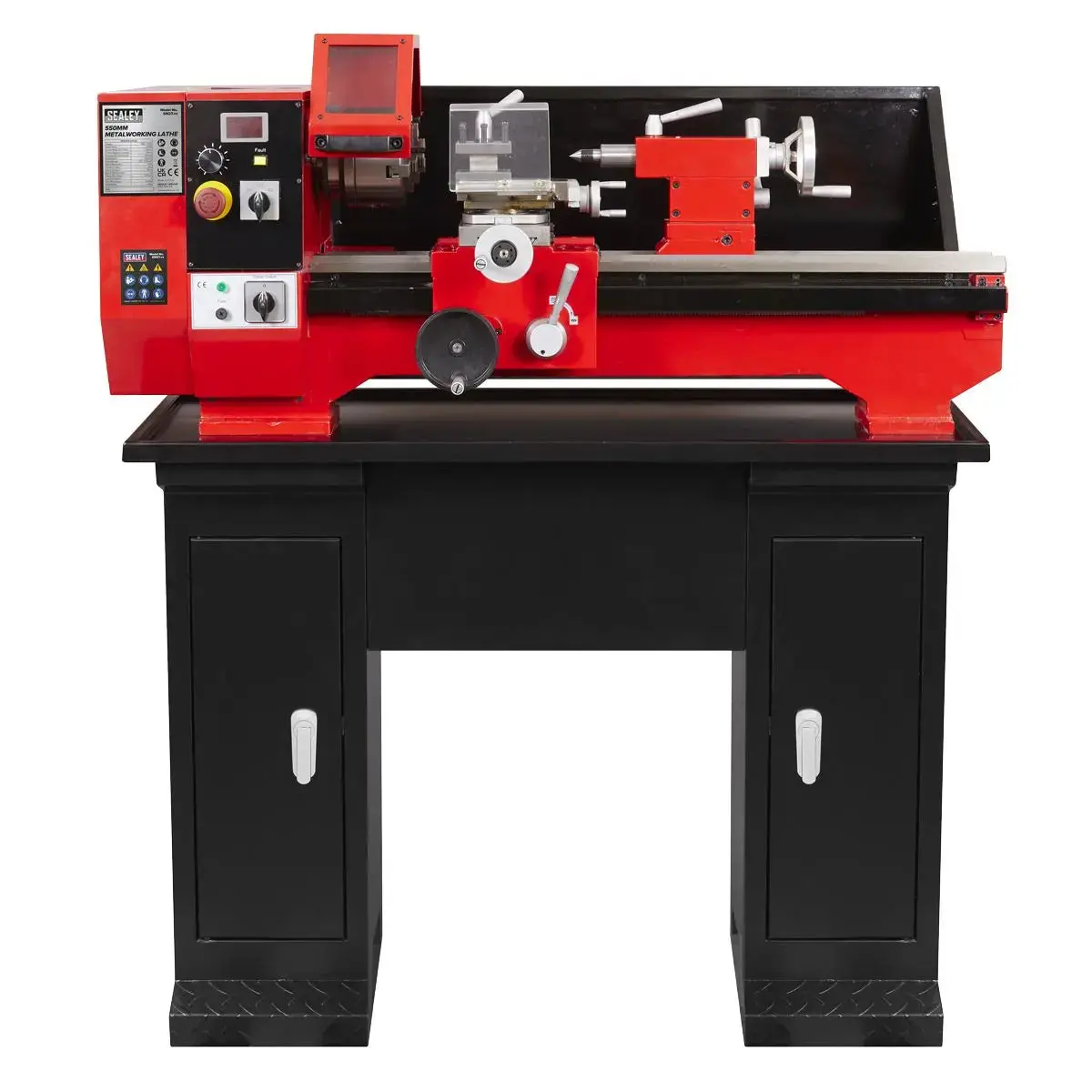

Sealey Metalworking Lathe 550mm Between Centres
HIGH QUALITY – Workshop lathe suitable for a wide range of turning and drilling applications.
VARIABLE SPEED – 550W Motor through infinitely variable speed gearbox.
SELF-CENTERING – 3-jaw chuck and dead centre.
POWER FEED – For even surface finish and thread cutting.
FAST TOOL CHANGE – 4-Way tool post mounted on compound slide mechanism enables fast interchange of cutting tools with accurate feed.
OPTIONAL STAND – Workshop stand available as an extra, order Model No. SM27ST.
NOTE – This item is heavy. Extra assistance must be provided at the delivery point to help.
Specification:
- Model No SM27
- Brand: Sealey
- Nett Weight: 145kg
- Centre Height Over Table: 120mm
- Centre Height Over Saddle 110mm
- Distance Between Centres: 550mm
- Spindle Bore: Ø26mm
- Speed Range: 100-2000rpm
- Head Stock Taper: MT4
- Tail Stock Taper: MT2
- Tail Stock Travel: 70mm
- Metric Pitch Quantity: 12
- Metric Pitch Range: 0.4-3mm
- Inch Pitch Quantity: 8
- Inch Pitch Range: 10-44tpi
- Motor Power: 550W
- Supply: 230V
Product Guarantee: 1 Year
Catalogue Page: Page 915
Downloadable Files:
- Instructions: View Here
- Parts Diagram: View Here
