Description
Sealey 90L Belt Drive Vertical Compressor 3hp
Air Displacement: 13.4cfm(380L/min).
Maximum Free Air Delivery: 9.7cfm(275L/min).
Maximum Pressure: 145psi(10bar).
Suitable for the professional workshop these units are fitted with a genuine 3hp motor.
Vertical tank saves space without compromising on performance.
Twin capacitors and a centrifugal switch aid trouble-free start-up on a 13A supply.

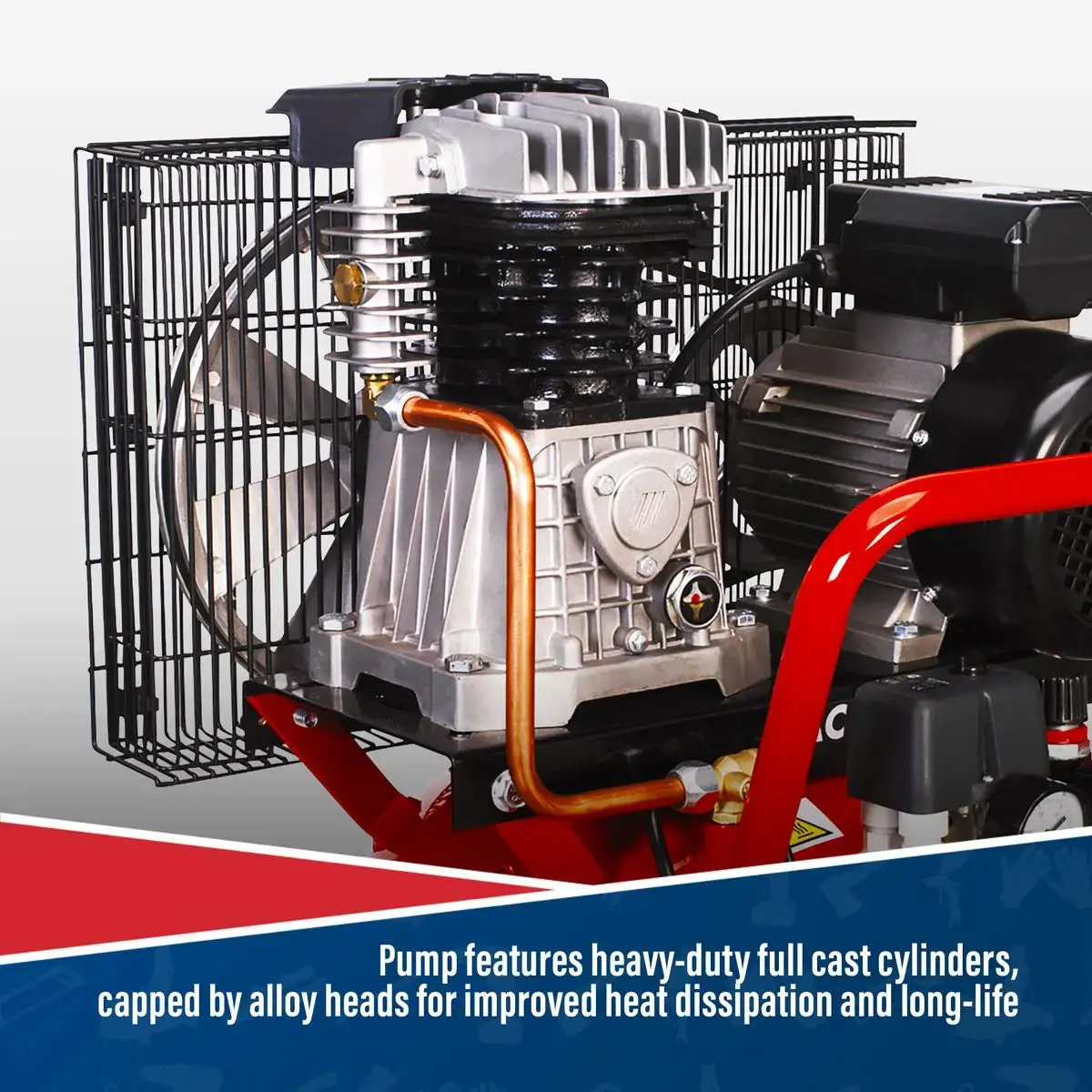

Pump features heavy-duty full cast cylinders, capped by alloy heads for improved heat dissipation and long-life.
Heavy-duty drive guards protect belt and flywheel that is designed to force air over the pump to aid cooling.
Specification:
- Model No SAC1903B
- Air Displacement cfm(L/min): 13.4(380)
- Brand: Sealey
- Maximum Free Air Delivery cfm(L/min): 9.7(275)
- Maximum Pressure: 145psi(10bar)
- Minimum Rated Supply: 13A
- Motor Output: 3hp
- Nett Weight: 65kg
- Oil Capacity: 0.45L
- Outlet: Quick Release Coupling
- Phase: 1ph
- Receiver Capacity: 90L
- Size (W x D x H): 525 x 495 x 1130mm
- Speed: 1636rpm
- Supply: 230V/13A
Product Guarantee: 1 Year
Catalogue Page: Page 1178
Downloadable Files:
- Instructions: View Here
- Material Safety Data Sheet: View Here
- Parts Diagram: View Here
