Description

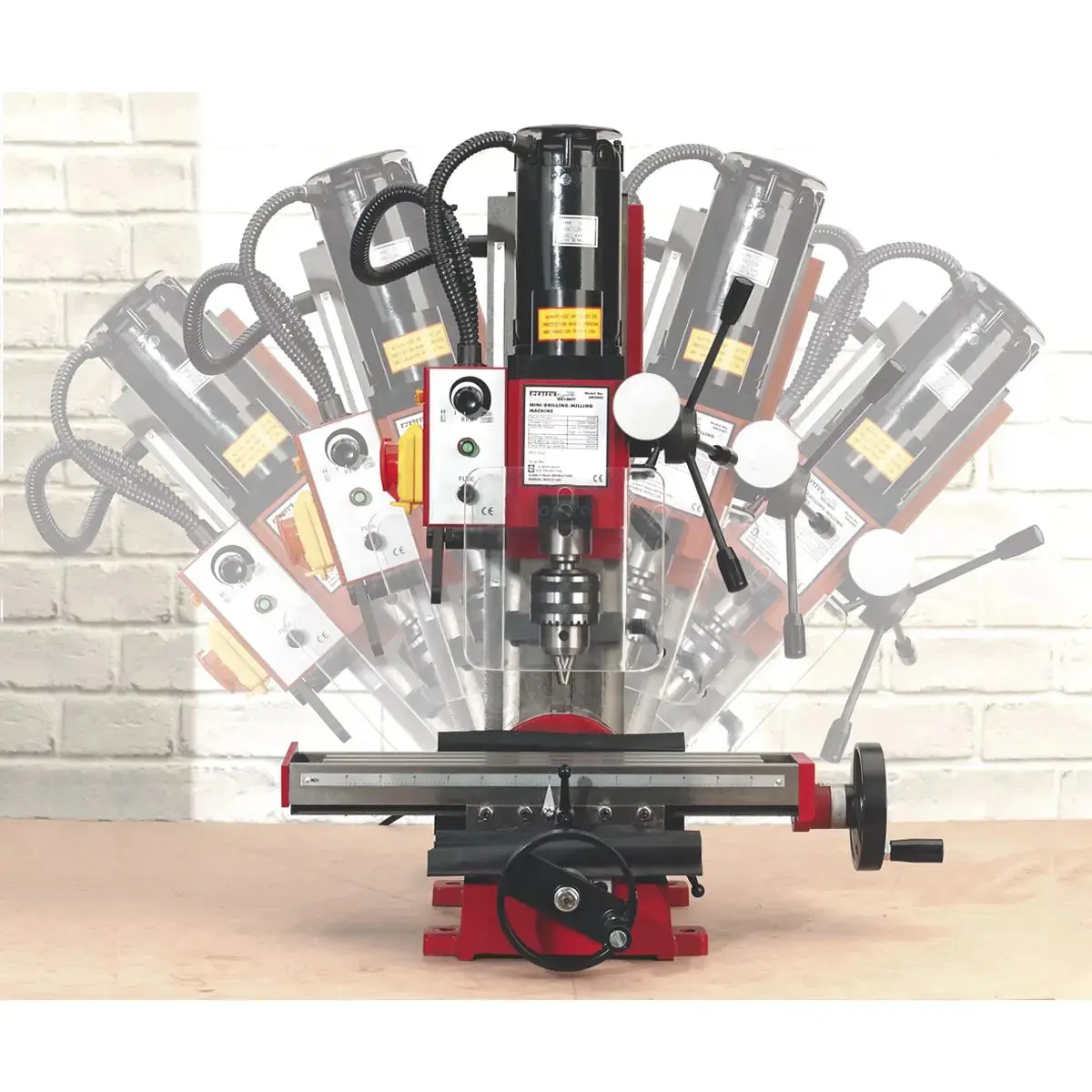

Sealey Mini Drilling & Milling Machine
Bench mounting mini drilling/milling machine with the flexibility to handle most materials.
Features include a 350W motor, variable speed drive, working table with T-slots to enable clamping of workpieces and Metric graduated compound scales.
The machine also incorporates a tilting column which allows drilling/milling of workpiece at ±45° from vertical.
Supplied with 13mm chuck accessory kit for adjusting and setting.
An optional stand is available, order Model No. SM3002ST.
A comprehensive range of accessories also available.
Specification:
- Model No SM2502
- Brand: Sealey
- Cross Axis: 100mm
- Drilling Capacity (Chuck Size): 13mm
- End Mill Capacity: 16mm
- Face Mill Capacity: 30mm
- Headstock Travel: 180mm
- Longitudinal Axis: 220mm
- Motor Power: 350W
- Nett Weight: 68kg
- Spindle Nose Taper: MT3
- Spindle Speed – High Range: 0-2500rpm
- Spindle Speed – Low Range: 0-1100rpm
- Spindle Tilt Angle: ±45°
- Supply: 230V
- T-Slot: 12mm
Product Guarantee: 1 Year
Catalogue Page: Page 913
Downloadable Files:
- Instructions: View Here
- Parts Diagram: View Here
