Sealey Dual-Voltage 12V/24V Battery Charger – 60A Smart Charging & 200A Engine Start

Description

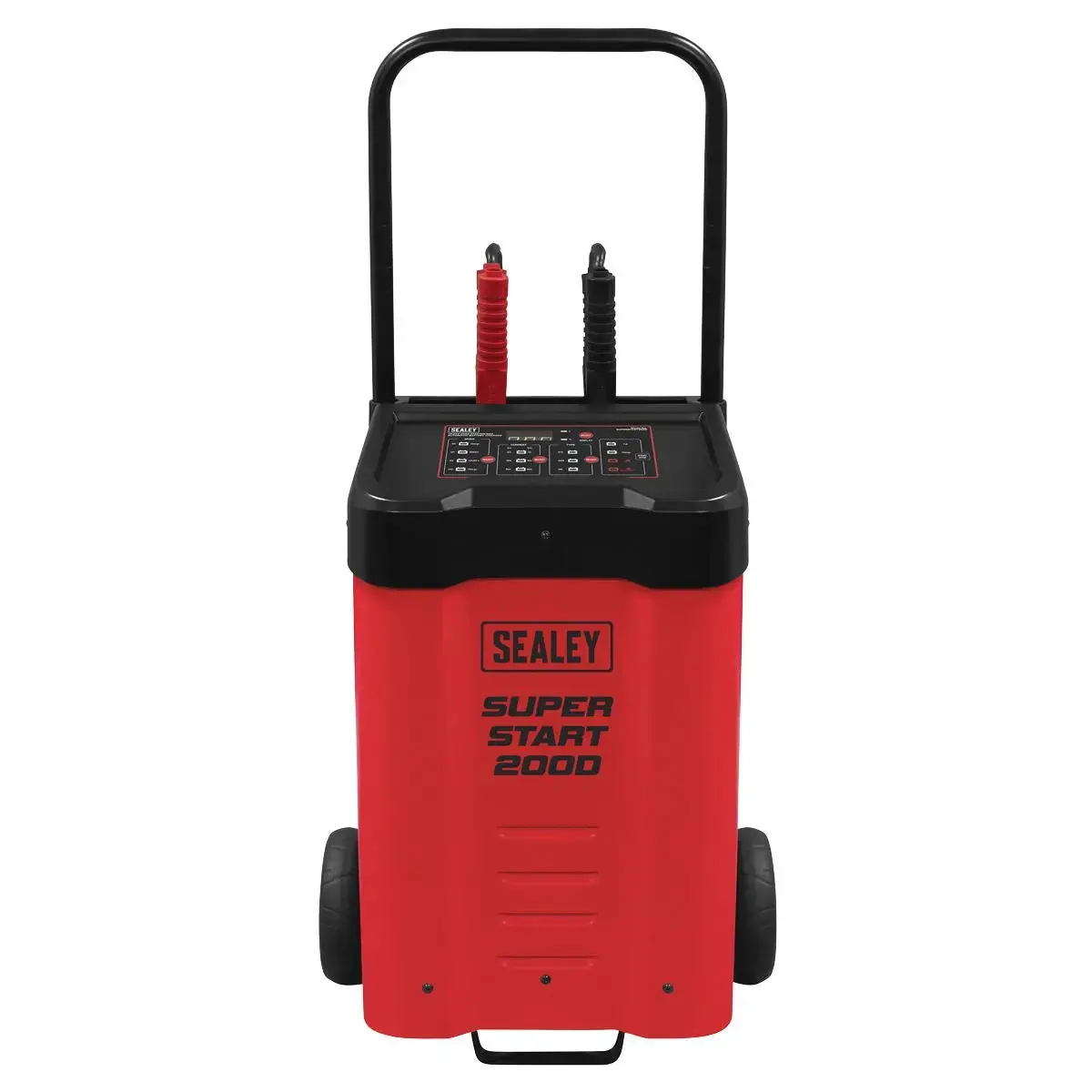

Sealey 12/24V Starter 200A/Automatic Battery Charger 60A

AUTOMATIC BATTERY CHARGER AND STARTER – Designed for charging, and boosting a variety of AGM (stop/start), GEL, lead acid and Lithium batteries up to 600Ah.

INTUITIVE – Digital display and 200A peak engine start function, makes this unit ideal for every workshop.

SAFETY FEATURES – Overcharge, short circuit, and reverse polarity protection.

DEDICATED CHARGING PROGRAMMES – Suitable for AGM, GEL, conventional Lead Acid and lithium batteries with fully automated charging algorithms.

MULTIPLE CHARGING PROGRAMMES – Three charging rates for both 12V and 24V systems.

PORTABLE DESIGN – Portable design with handle means you can easily manoeuvre the unit around the workshop.
Specification:

• Model No SUPERSTART200D
• Brand: Sealey
• Cable & Clamp Length: 2m
• Nett Weight: 16kg
• Output: 12/24V
• Zero Voltage Charging: No
• Battery Support/DC Supply Mode: No
• Supply Current: 13A
• Plug Type: 3-Pin
• Power Supply Cable Length: 1.9m
• Cable & Clamp Length: 2m
• Charger Type: Traditional (T) or Intelligent (HF): HF
• Battery Range: 10Ah – 600Ah
• Max. Size Battery (AH) Full Charge in 12hrs from Discharged: 600Ah
• Output Charge Peak: 60A – 12V, 30A – 24V

({IF[“Output Charge Rates: 12V – 60A, 30A, 10A24V – 30A, 15A, 5A12V 10A LiFePo4″!=””]})

• Output Charge Rates: 12V – 60A, 30A, 10A24V – 30A, 15A, 5A12V 10A LiFePo4

({ENDIF})

• Start Peak: 200A (12V only) (5s on, 180 off)
• Battery Type: GEL, AGM, STD, LITHIUM (12V ONLY), LEISURE
• Working Temp: (-10°C – 40°C)
• Housing Protection: IP20
• Max Charging Volts 12V (24V) Lead Acid Batteries: AGM, 14.7V (29.4V), GEL, 14.1V (28.2V), STD, 14.4V (28.8V)
• Max Charging Volts 12V LifeP04: 14.5V
• Nett Weight: 16kg

Product Guarantee: 1 Year
Catalogue Page: Page 627
Downloadable Files:

• Instructions: View Here
• Parts Diagram: View Here
