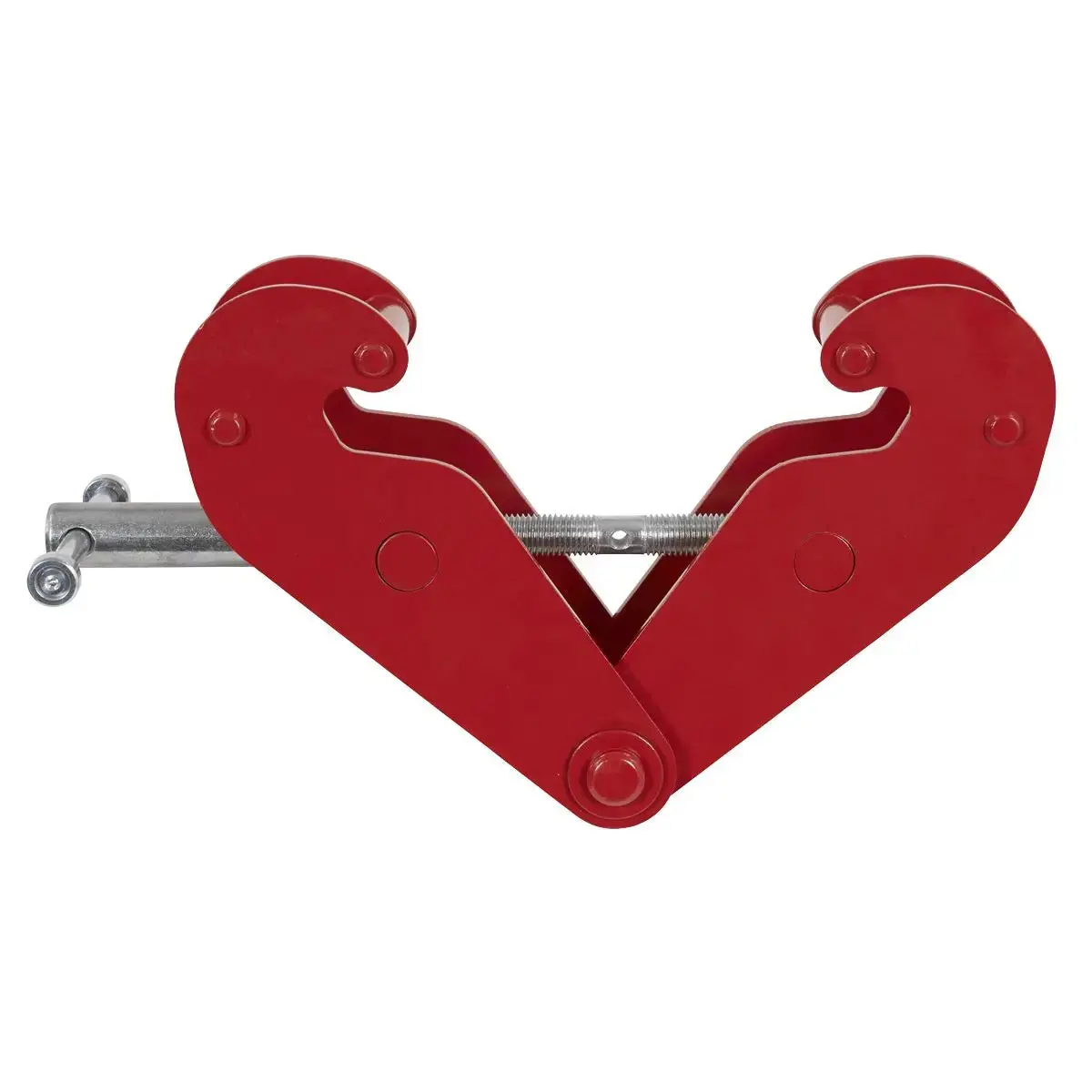

Sealey Heavy-Duty 3-Tonne Beam Clamp

Description

SECURE ATTACHMENT – Suitable for semi-permanent attachment to steel beams and acts as a lifting point for chain blocks, hoists and lifting tackle.

SOLID CLAMP – The clamp may also be used for lifting and transfer of steel beams and as a pulling clamp.

LOW PROFILE – Low profile afforded by integral pivot/lifting point.

ROBUST CONSTRUCTION – All steel structure. Powder paint coated for rust resistance.
Specification:

• Model No BC3000
• Adjustable Beam Width: 75-220mm
• Brand: Sealey
• Capacity: 3000kg
• Dimensions: (A) – 260mm, (B) – 180-360mm, (C) – 74mm, (D) – 6mm, (E) – 215mm, (F) – 102-155mm, (G) – 25mm, (H) – Ø22mm
• Nett Weight: 8.9kg
• Note: Refer to catalogue for diagram.

Product Guarantee: 1 Year
Catalogue Page: Page 894
Downloadable Files:

• Instructions: View Here
• Parts Diagram: View Here
