Description

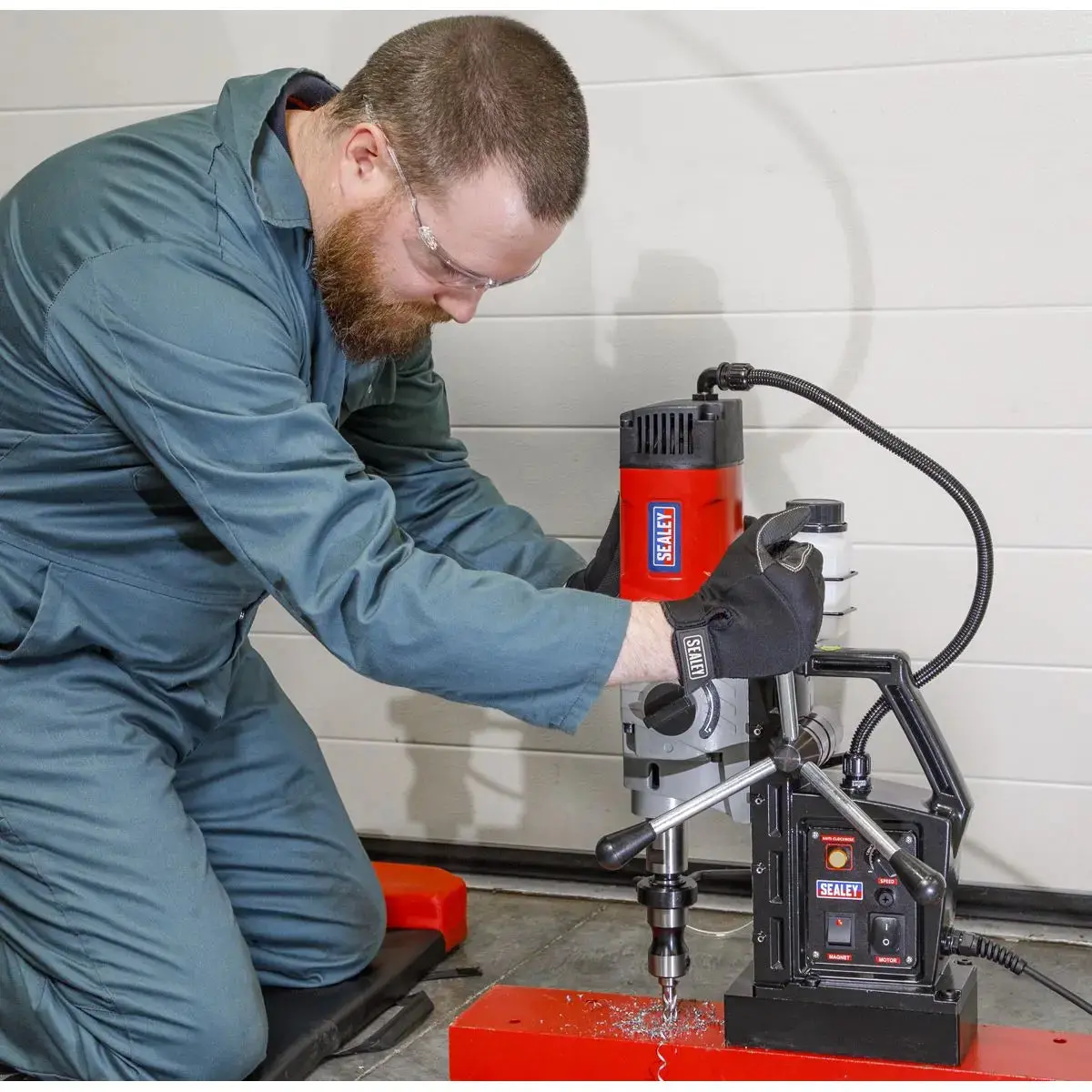

Sealey Magnetic Drilling Machine Heavy-Duty 60mm 230V
Manufactured using high quality components for performance and reliability.
Made from heavy-duty die-cast magnesium alloy with a variable speed gearbox for greater accuracy.
Fitted with a powerful magnet to ensure unit stays adhered at any angle.
Uses a double dovetail groove to increase the stroke length.
Includes safety fixing strap and integrated coolant system.
Can be used with a 16mm twist drill chuck and M8 to M20 Tapping chucks.
Designed for use in fabrication, construction and other applications when drilling/tapping ferrous metal.
Specification:
- Model No MAG60230VHD
- Brand: Sealey
- Magnet Adhesion: 17000N
- Maximum Annular Cutter Capacity: Ø60mm
- Maximum Cutter Depth: 50mm
- Motor Power: 1880W
- Nett Weight: 22.50kg
- No-Load Speed: 220/380rpm
- Core Drill Diameter: Ø60mm
- Twist Drill Diameter: 23mm
- Tapping Drill Diameter: M8 – M20
- Power Supply: 220V – 50Hz
- Motor Power: 1880W
- Magnetic Adhesion: 17000N
- No-Load Speed: 0-380rpm
- Cutting Depth: 50mm
- Morse taper: MT3
- Stroke Length: 220mm
Product Guarantee: 1 Year
Catalogue Page: Page 911
Downloadable Files:
- Instructions: View Here
- Parts Diagram: View Here
