Sealey Imperial Multi-Gauge Tool

Description

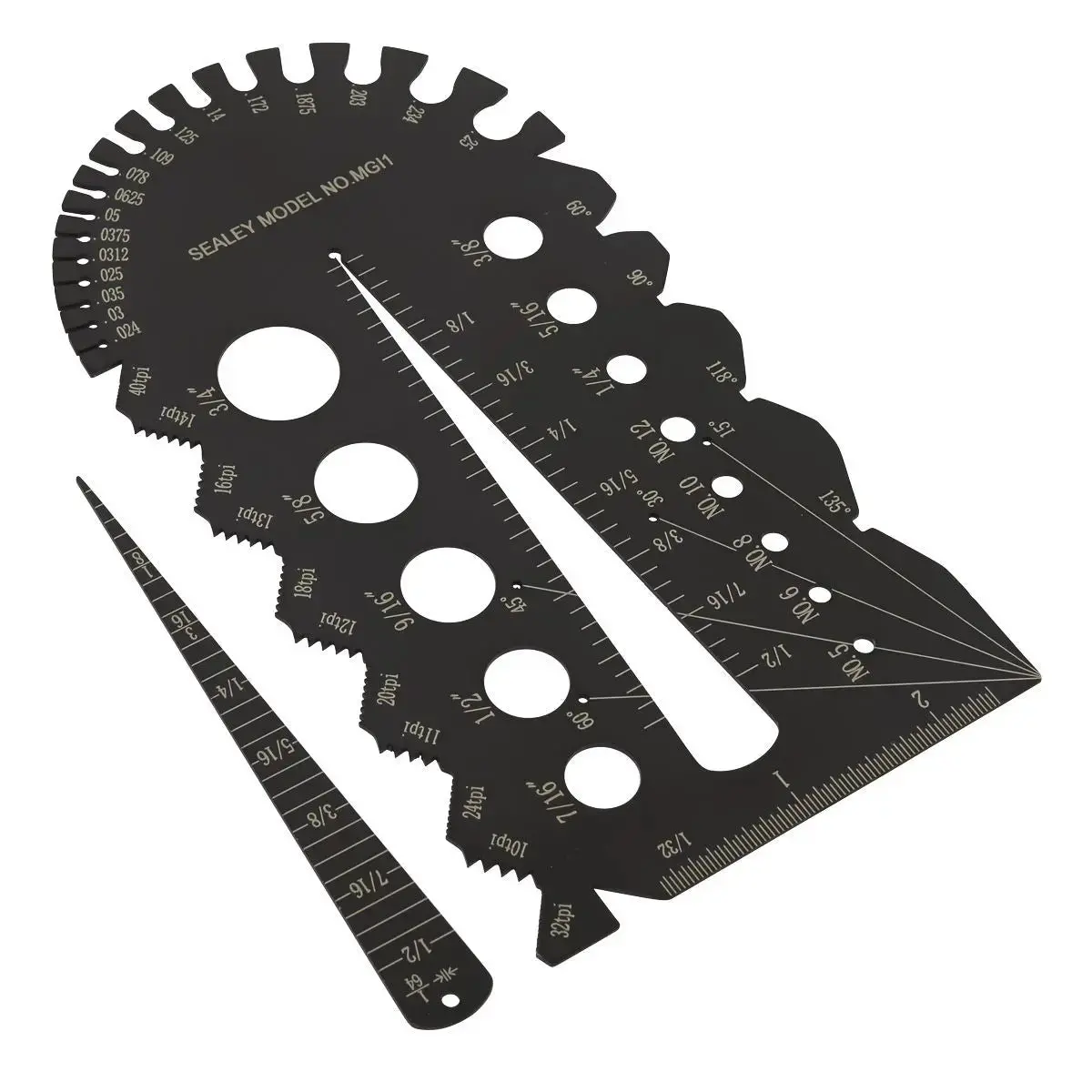

Sealey Imperial Multi-Gauge

Stainless steel imperial multifunction thread/pitch identification gauge.

Pitches: 10, 11, 12, 13, 14, 16, 18, 20, 24, 32, 40 (tpi).

Bolt Screw Diameters: No.5, No.6, No.8, No.10, No.12, 1/4″, 5/16″, 3/8″, 7/16″, 1/2″, 9/16″, 5/8″, 3/4″.

Wire Gauge: 0.024″, 0.03″, 0.035″, 0.025″, 0.0312″, 0.0375″, 0.05″, 0.0625″, 0.078″, 0.109″, 0.125″, 0.14″, 0.172″, 0.1875″, 0.203″, 0.234″, 0.25″.

Square: 15°, 30°, 45°, 60°, 90°.

Drill Point Angle: 60°, 90°, 118°, 135°.

Bolt screw length: 0-2-3/8″

Tap/Drill Recommendation: #2-3/4″

Check the thickness of washers and diameter of electric wire.
Specification:

• Model No MGI1
• Brand: Sealey
• Nett Weight: 137.5g
• Bolt Screw Diameters: No.5, No.6, No.8, No.10, No.12, 1/4”, 5/16”, 3/8”, 7/16”, 1/2”, 9/16”, 5/8”, 3/4”
• Bolt Screw Length: 0-2-3/8″
• Drill Point Angle: 60°, 90°, 118°, 135°
• Pitches: 10, 11, 12, 13, 14, 16, 18, 20, 24, 32, 40 (tpi)
• Square: 15°, 30°, 45°, 60°, 90°
• Tap/Drill Recommendation: #2-3/4″
• Wire Gauge: 0.024″, 0.03″, 0.035″, 0.025″, 0.0312″, 0.0375″, 0.05″, 0.0625″, 0.078″, 0.109″, 0.125″, 0.14″, 0.172″, 0.1875″, 0.203″, 0.234″, 0.25″

Product Guarantee: 1 Year
Catalogue Page: Page 239
