Description

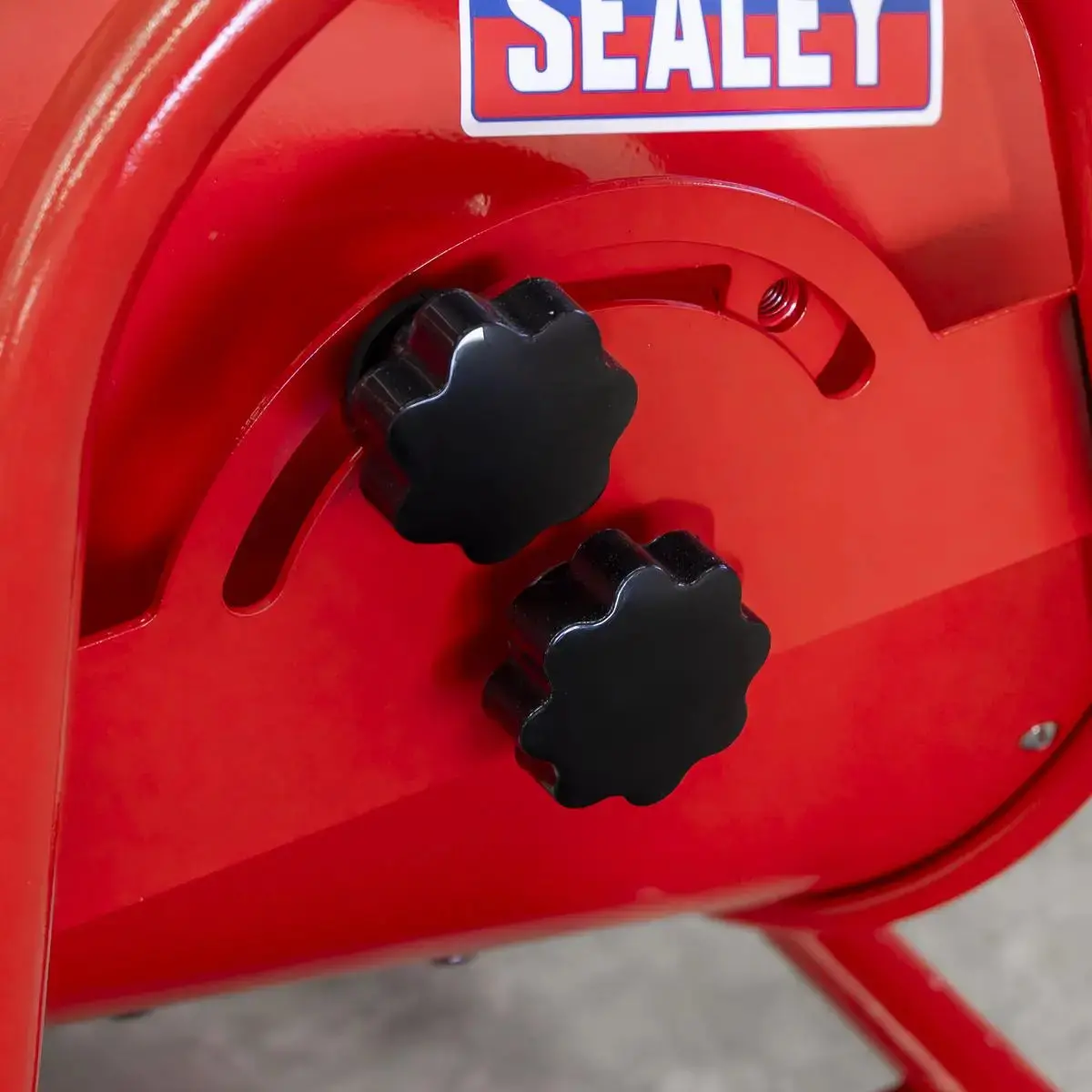

Sealey Portable Ventilator Ø500mm with 5m Ducting
VOLUME VENTILATION – Ideal for use where high volume clean air delivery is required. Airflow: 9900m³/hr(5814cfm).
DIVERSE USAGE – Can be used across multiple industries including but not exclusive to: Marine, roof spaces and building sites, cable/pipe ducts and workshops.

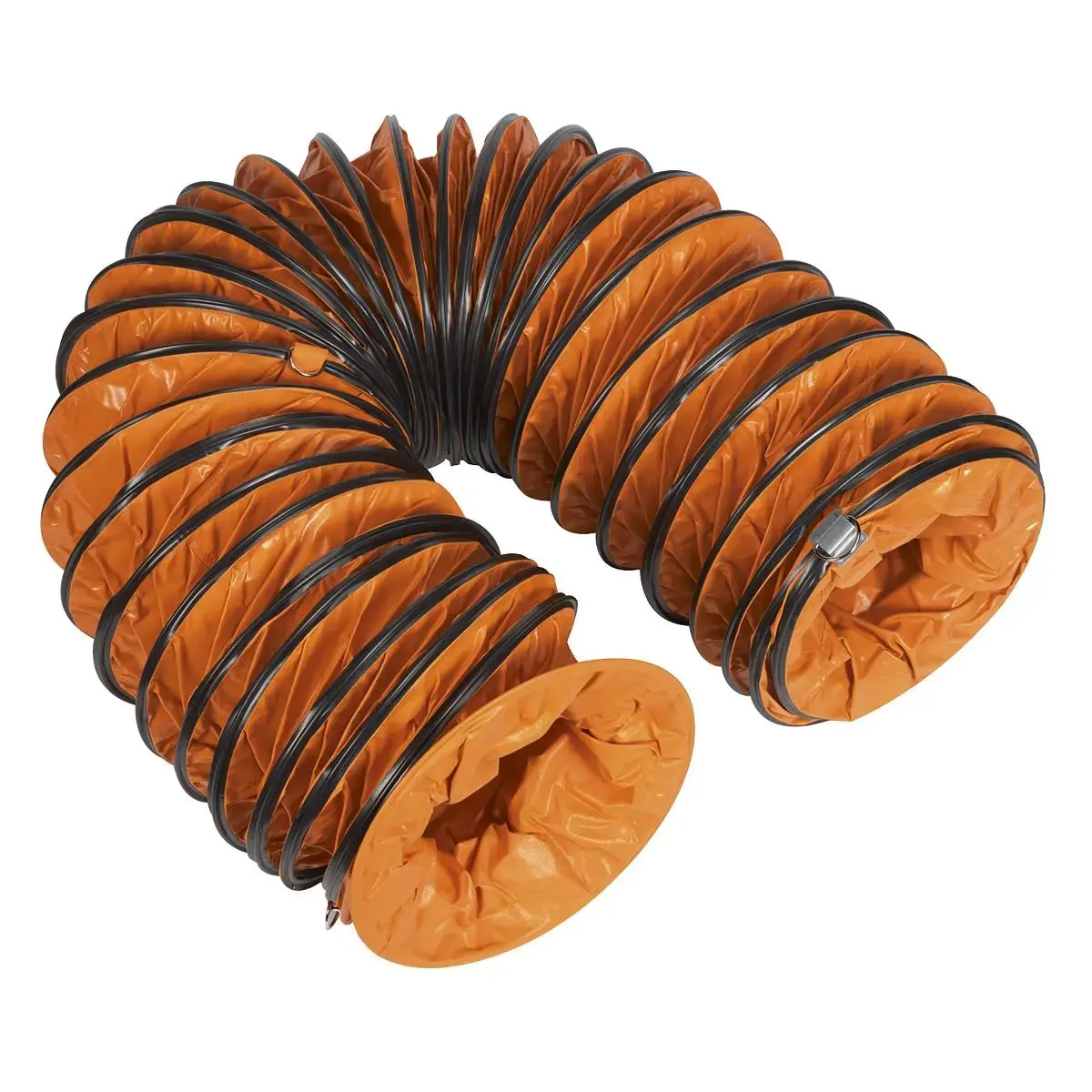

DUCTING SUPPLIED – 5m Ducting is supplied with this product. 10m Ducting is available but not included (VEN500AK2).
WHEEL MOUNTED – Lightweight with four castor wheels making it easily portable.
Specification:
- Model No VEN500
- Airflow: 9900m³/hr(5814cfm) – 165m³/min
- Brand: Sealey
- Fan Diameter: Ø500mm
- Fan Speed: 1400rpm
- Maximum Air Velocity: 14m/s
- Maximum Airflow: 9900m³/hr(5,814cfm), 165m³/min
- Nett Weight: 52kg
- Noise Level: 74dB(A)
- Note: RPM – 1420 r/min
- Power: 1100W
- Replacement Parts: VEN500AK1/VEN500AK2
- Overall Efficiency (n): 35.94%
- Measurement Category: C
- Efficiency Category: Static
- Efficiency Grade: 40
- Static Pressure: 4.5mbar
- Supply: 230V
Product Guarantee: Consumable
Catalogue Page: Page 1272
Downloadable Files:
- Instructions: View Here
- Parts Diagram: View Here
