Description

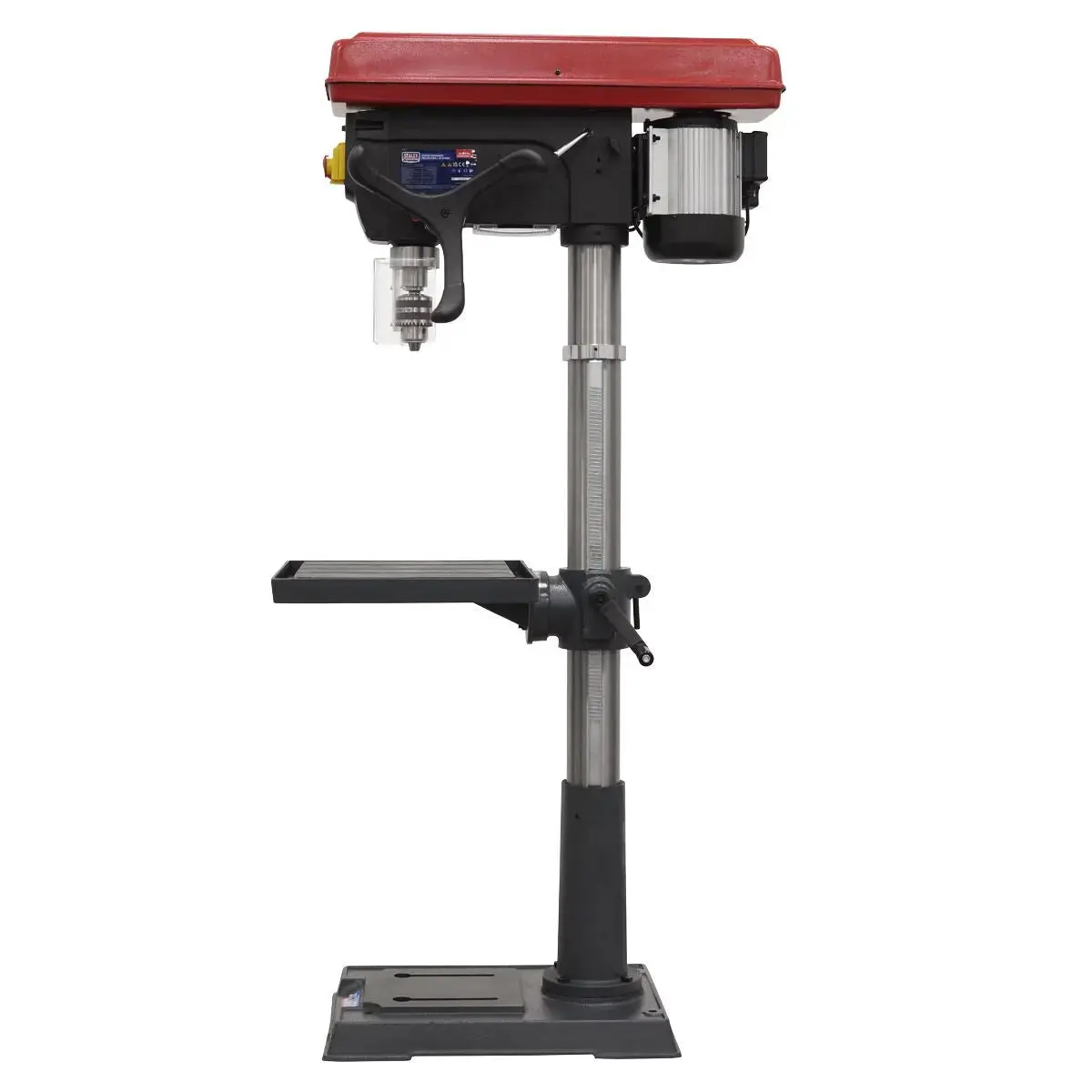

Sealey Premier Floor Standing Pillar Drill 12-Speed 1100W/230V
DURABLE – Features heavy-duty aluminium-bodied motor for long and reliable performance.
SPEED CONTROL – All models offer multiple speed drives and drive belt cover is protected by a microswitch to prevent drill operating when cover is open.
SCOPE – Spindle Centre to Column: 260mm.
CONTROL – Large sized square table fitted with precision rack and pinion height adjustment.
CHUCK CAPACITY – 20mm (3/4″), MT4.
EDUCATIONAL USES – Safety devices fitted include a no-voltage release switch to prevent inadvertent start-up, allowing insurance company approval for use in educational establishments.
(NB -) Integral worklight (60W E27 bulb not included).
3 YEAR GUARANTEE*.
Specification:
- Model No PDM260F
- Base Size: 575 x 455mm
- Brand: Sealey Premier
- Collar Diameter: Ø85mm
- Column Diameter: Ø92mm
- Drilling Capacity (Chuck Size): 20mm
- Integral Work Light: Yes
- Maximum Distance Spindle to Base: 1160mm
- Maximum Distance Spindle to Table: 680mm
- Motor Power (Start): 1100W(1500W)
- Nett Weight: 110kg
- Number of Speeds: 12
- Optional Accessories: PDM/KC – Keyless Pillar Drill Chuck 16mm
- Overall Height: 1710mm
- Speed Range: 120-3480rpm
- Spindle Centre to Column: 260mm
- Spindle Nose Taper: MT4
- Spindle Travel: 120mm
- Supply: 230V
- Swing: 520mm
- Working Base Surface Size: 410 x 330mm
- Working Table Surface Size: 425 x 475mm
Product Guarantee: 3 Years
Catalogue Page: Page 908
Downloadable Files:
- Instructions: View Here
- Parts Diagram: View Here
