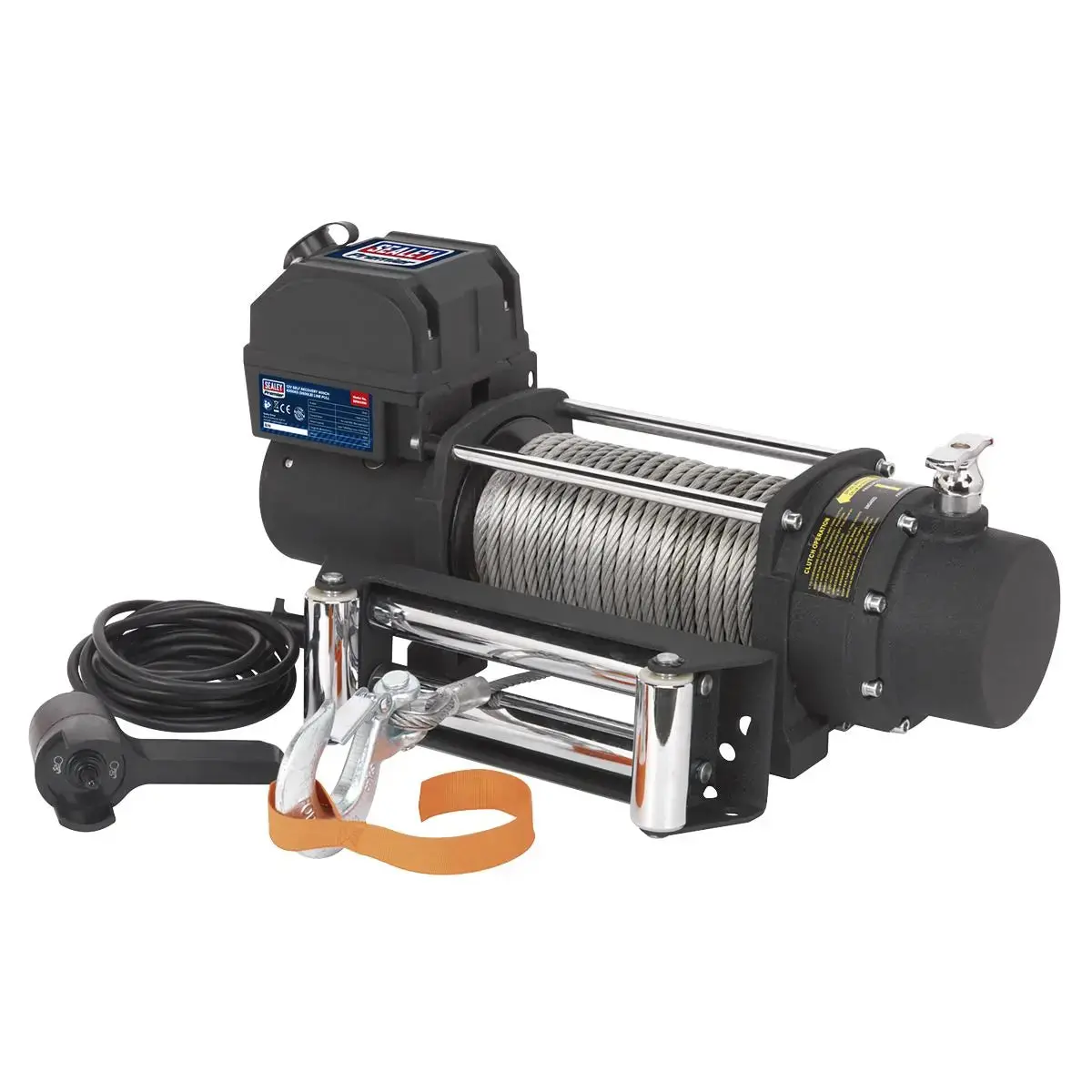

Sealey Premier Self-Recovery Winch 4300kg (9500lb) Line Pull 12V
Suitable for self-recovery and off-road use.
Designed and built with the toughest jobs in mind.
Heavy-duty all-weather housing and solenoids.
High power 1.9kW 12V DC series wound motor gives first class pulling power.
3-Stage planetary gears using oversized components for greater torque plus mechanical braking.
Remote control allows power in and power out of cable from a safe distance.
Ergonomic ‘lift & turn’ free spool clutches.
High quality wire rope with a 4-way roller fairlead for smooth and even distribution of cable onto drum.
Cable Length: 26m.
Line Pull*: 4300kg(9500lb).
Gear Ratio: 196.6:1.
IP67 rated.
3 Year Guarantee*.*Performance quoted at first layer of cable on drum.
Specification:
- Model No SRW4300
- Brand: Sealey Premier
- Consumable Parts: SRW5450.WR, SRW5450.DR
- Current Draw: No-Load – 90A, Maximum Load – 420A
- Gear Ratio: 196.6:1
- Line Pull*: 4300kg(9500lb)
- Line Speed*: No Load – 4.3m/min, Maximum Load – 1.6m/min
- Motor Power: 1.9kW
- Nett Weight: 40kg
- Note: *Performance quoted at first layer of cable on drum
- Supply: 12V
- Wire Rope Diameter: 9.2mm
- Wire Rope Length: 26m
Product Guarantee: 3 Years
Catalogue Page: Page 1459
Downloadable Files:
- Instructions: View Here
- Parts Diagram: View Here
