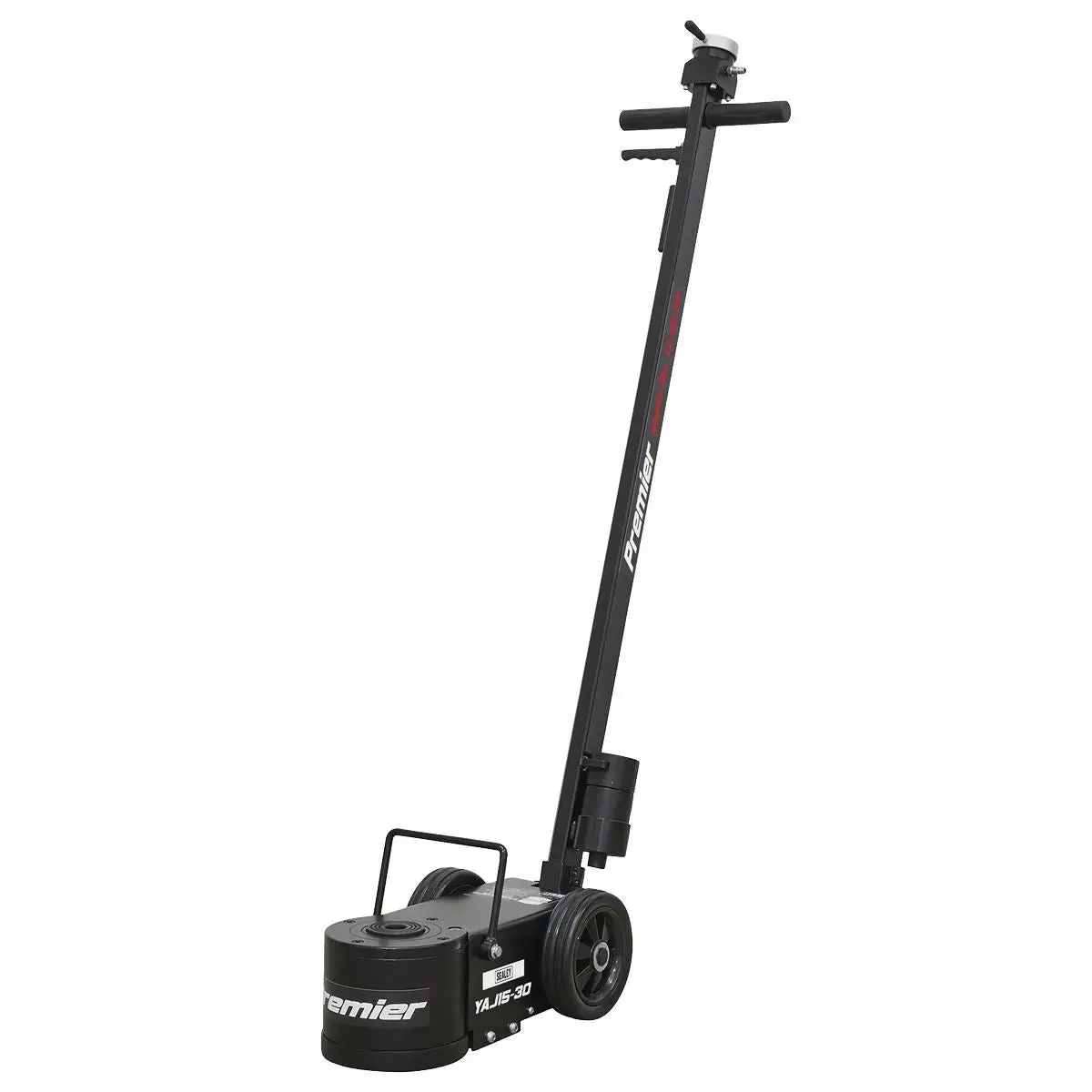

Sealey Premier Air Operated Telescopic Jack 15-30 Tonne
Spring loaded dead man’s control enables safe, controlled lifting/lowering of vehicle.
Handle locks in position and can be used at three different angles to allow improved manoeuvrability and access around the vehicle.
Ideal for workshop or roadside use, takes the effort out of lifting heavy plant, tractors and commercial vehicles.
Supplied with 45mm and 75mm extensions to help close the gap between the saddle of the jack and the jacking point.
3 Year guarantee*.
Specification:
- Model No YAJ15-30
- Air Consumption: 10.5cfm
- Brand: Sealey Premier
- Capacity: 30 Tonne
- Chassis Length: 483mm
- Extensions: 45/75mm
- Maximum Height (inc. Extension)/Capacity-Stage 1 (mm/tonne): 393/30
- Maximum Height (inc. Extension)/Capacity-Stage 2 (mm/tonne): 473/15
- Maximum Height (inc. Extension)/Capacity-Stage 3 (mm/tonne): n/a
- Maximum Length: 1700mm
- Minimum Saddle Height: 176mm
- Nett Weight: 42kg
- Overall Width: 276mm
- Piston Stroke: 177mm
- Screw Extension: n/a
- Width without Wheels: 176mm
- Working Pressure: 116-145psi
Product Guarantee: 3 Years
Catalogue Page: Page 846
Downloadable Files:
- Instructions: View Here
- Material Safety Data Sheet: View Here
- Parts Diagram: View Here
