Description

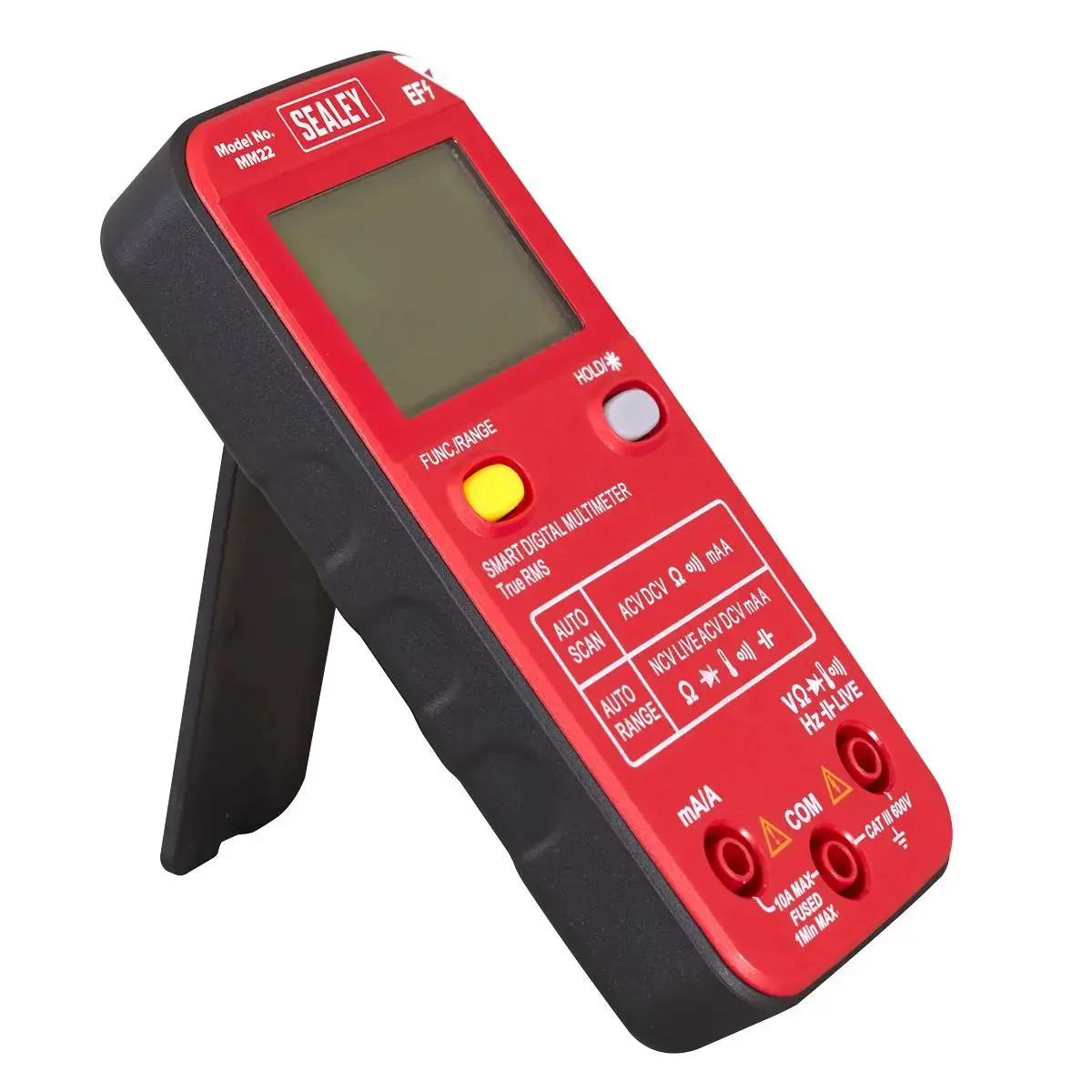

Sealey 13-Function Professional Smart Auto-Scanning Digital Multimeter
HIGH-PRECISION PERFORMANCE – Smart auto-ranging multimeter ensures accurate and reliable measurements.
INTELLIGENT – The multimeter automatically detects and selects the required test function, AC/DC, voltage/current, resistance and continuity.
SAFETY COMPLIANCE – Conforms to EN 61010-1 CATIII 600V safety requirements for electrical equipment for measurement, control and laboratory use.
VERSATILE FEATURES – Includes temperature measurement capability, data-hold and auto-power-off function.
NON-CONTACT VOLTAGE DETECTION (NCVD) – Allows safe, one-handed use.
LIVE TEST FUNCTIONALITY – Can test for live feeds with a single probe.
COMPREHENSIVE ACCESSORIES – Supplied with probes, including a thermocouple probe, and integral upright stand for use on the workbench.
LCD DISPLAY – Clear and easy-to-read.
Specification:
- Model No MM22
- Brand: Sealey
- Nett Weight: 0.20kg
- AC Voltage (Accuracy): 400mV/4V/40V/400V/600V
- DC Voltage (Accuracy): 400mV/4V/40V/400V/600V
- AC Current (Accuracy): 4000mA/10.00A
- DC Current (Accuracy): 4000mA/10.00A
- Resistance (Accuracy): 400Ω/4kΩ/40kΩ/400kΩ/4MΩ/40MΩ
- Auto Range: ACV/DCV/Resistance/Continuity/Diode/Temperture/Capacitance/NCV/LIVE/mA/A
- Auto Scan: V/R/CONT/A
- Temperature (Accuracy): -200°C to 1200°C-328°F to 2192°F
- Frequency (Accuracy): Yes
- Duty Cycle: No
- Continuity: Yes
- Diode Test: Yes
- Backlit/Tourch Yes
- Transistor Test: No
- Hi-Impact Rubber Case: No
- Digits x Height: 4 x 16mm
- Low Battery Indicator: Yes
- Battery (Supplied): 2 x 1.5V (AAA)
- Information: Data-Hold, Auto-Power-Off, Integral Stand & Live Test.
- Size (L x W x D): 130 x 62 x 26mm
- Weight: 0.138kg
- Conformity: EN 61010-1
({IF[“Temperature (Accuracy): -200°C to 1200°C-328°F to 2192°F”!=””]})
({ENDIF})
Product Guarantee: 1 Year
Catalogue Page: Page 410
Downloadable Files:
- Instructions: View Here
- Material Safety Data Sheet: View Here
