Description
Sealey Professional Auto-Ranging Digital Multimeter
Lightweight, auto-ranging digital multimeter with double moulded plastic housing and a 2000 counts LCD display.

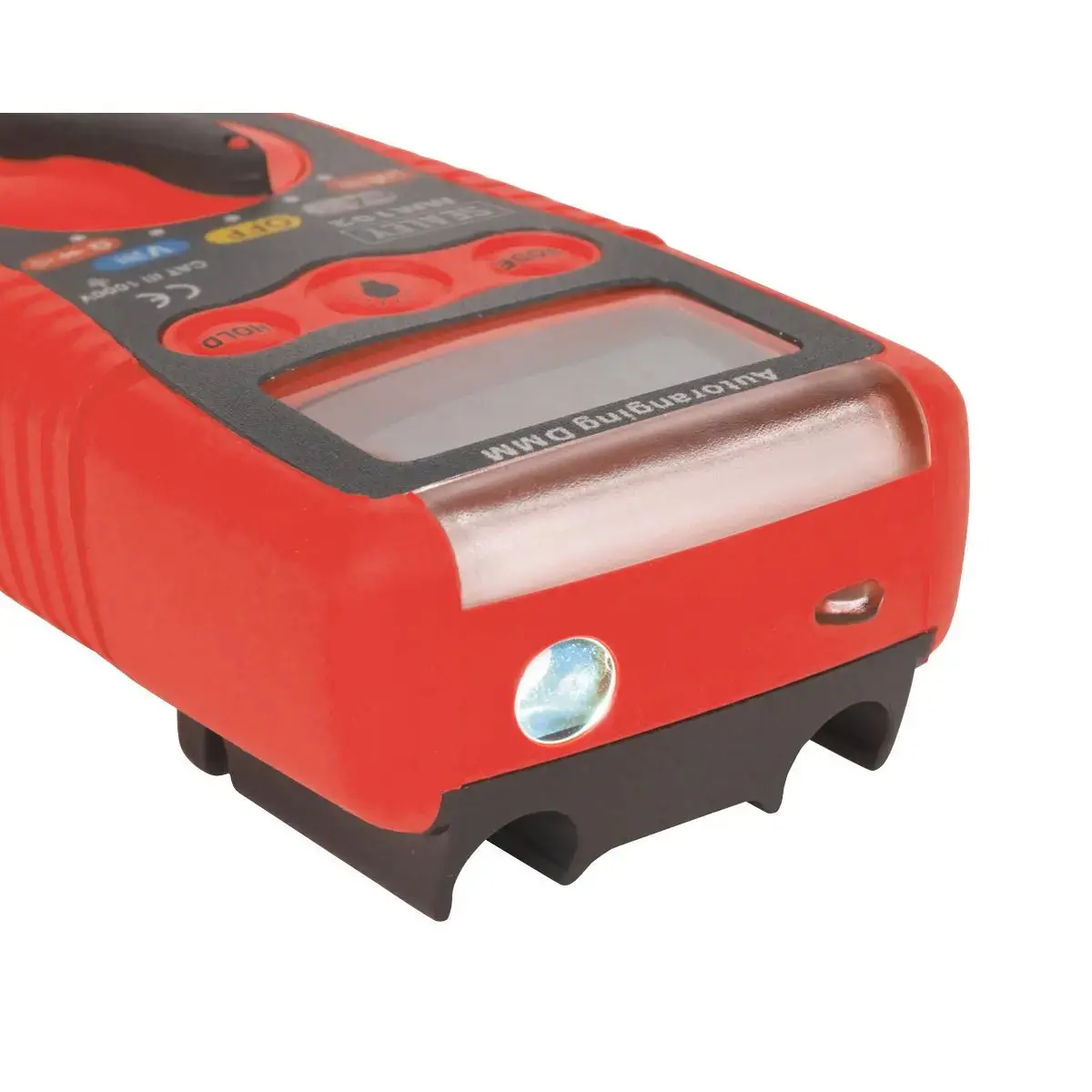

Features forward facing worklight, data-hold and non-contact voltage detection.
Conforms to EN 61010-1 CAT IV 600V safety standard.
Specification:
- Model No MM102
- Brand: Sealey
- Nett Weight: 160g
- AC Voltage (Accuracy): 2V, 20V (±1%), 200V, 600V (±2.3%)
- DC Voltage (Accuracy): 200mV (±0.5% + 3-digits), 2V, 20V, 200V, 600V (±1.2%)
- AC Current (Accuracy): 200µA, 2000µA, 20mA, 200mA (±2.5%)
- DC Current (Accuracy): 200µA, 2000µA, 20mA, 200mA (±2%)
- Resistance (Accuracy): 200Ω (±0.8% + 5-digits), 2KΩ, 20KΩ, 200KΩ (±1.2%), 2MΩ (±5%), 20MΩ (±10%)
- Capacitance (Accuracy): No
- Frequency (Accuracy): No
- Duty Cycle: No
- Continuity Audible: Yes
- Diode Test: Yes
- Transistor Test: No
- Hi-Impact Case: No
- Digits x Height: 4 x 14mm
- Low Battery Indicator: Yes
- Battery (Supplied): 2 x 1.5V
- Size (L x W x D): 105 x 57 x 34mm
- Weight: 160g
- Conformity: EN61010-1
- Non-Contact Voltage Detection VAC: 100V – 600V
Product Guarantee: 1 Year
Catalogue Page: Page 412
Downloadable Files:
- Instructions: View Here
- Material Safety Data Sheet: View Here
