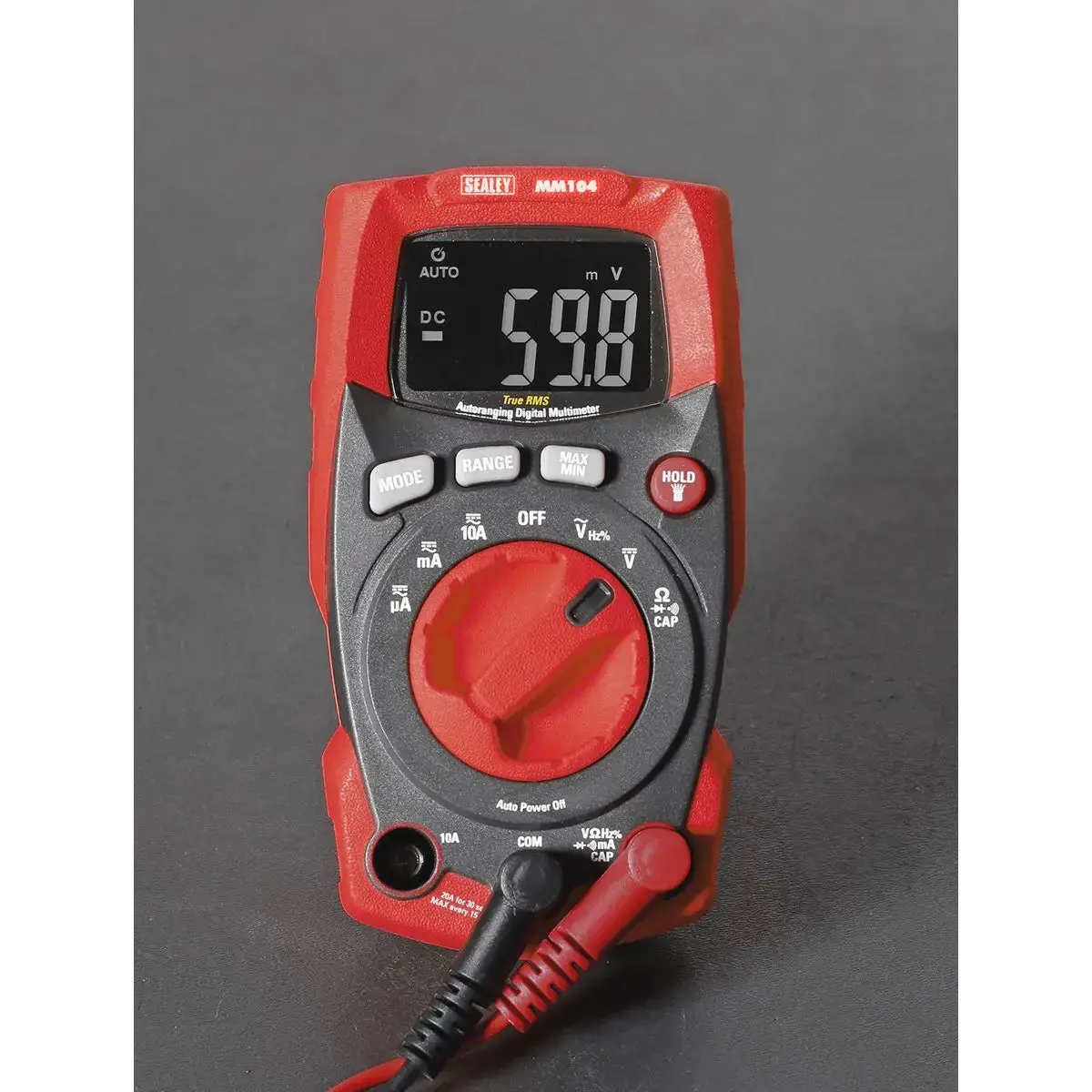

Sealey Professional Digital Multimeter with Auto-Ranging Functionality

Description

Sealey Professional Auto Ranging Digital Multimeter
Lightweight, Compact Digital Multimeter with Double Moulded Plastic Housing and a 4000 Counts LCD Display
Drop Proof up to 2m
IP65 Rated as “Dust Tight” and Protected Against Low Pressure Water Jets (All Directions)
Features Display Back Light and Forward Facing Work Light
Conforms to EN 61010-1 and EN 61010-2-033 CATIII 600V Safety Requirements for Electrical Equipment for Measurement, Control and Laboratory Use
Specifications:

• AC Voltage (Accuracy): 4V, 40V, 400V, 600V (±1.2%)
• DC Voltage (Accuracy): 0-400mV (±1%), 4V, 40V, 400V, 600V (±1%)
• AC Current (Accuracy): 400µA, 4000µA, 40mA, 400mA (±1.2%), 4A, 10A (±1.8%)
• DC Current (Accuracy): 400µa, 4000µa, 40mA, 400mA (±1%), 4A, 10A (±1.2%)
• Resistance (Accuracy): 0-400Ω, 4kΩ, 40kΩ, 400kΩ, 4MΩ (±1.5%), 40MΩ (± 2.5%)
• Capacitance (Accuracy): 40nF, 400nF (±4.5%), 4µF, 40µF, 400µF (±3%), 4000µF (±5%)
• Frequency (Accuracy): 10kHz (±1.5%)
• Duty Cycle: 99.9% (±1.2%)
• Continuity Audible: Yes
• Diode Test: Yes
• Transistor Test: No
• Hi-Impact Case: Yes
• Digits x Height: 4 x 14mm
• Low Battery Indicator: Yes
• Battery (Supplied): 2 x 1.5V
• Size (L x W x D): 117 x 62 x 45mm
• Weight: 260g
• Conformity: EN 61010-1, EN 61010-2-033
