Sealey Viking Industrial Engine Crane 1 Tonne
FOLDING PARALLEL LEGS – The legs fold away for storage and transportation and extend parallel to fit around various obstructions like pallets, boxes, etc.
SAFETY RELEASE – Hand operated dead man’s control to prevent accidental lowering.
CONTROLLABLE RELEASE – Manually controlled descent speed.
FIVE POSITION JIB – The jib can be extended and locks in five positions between 960-1350mm.
TURNING PUMP HANDLE – The hydraulic unit and handle rotates by 200° aiding use where space is limited.

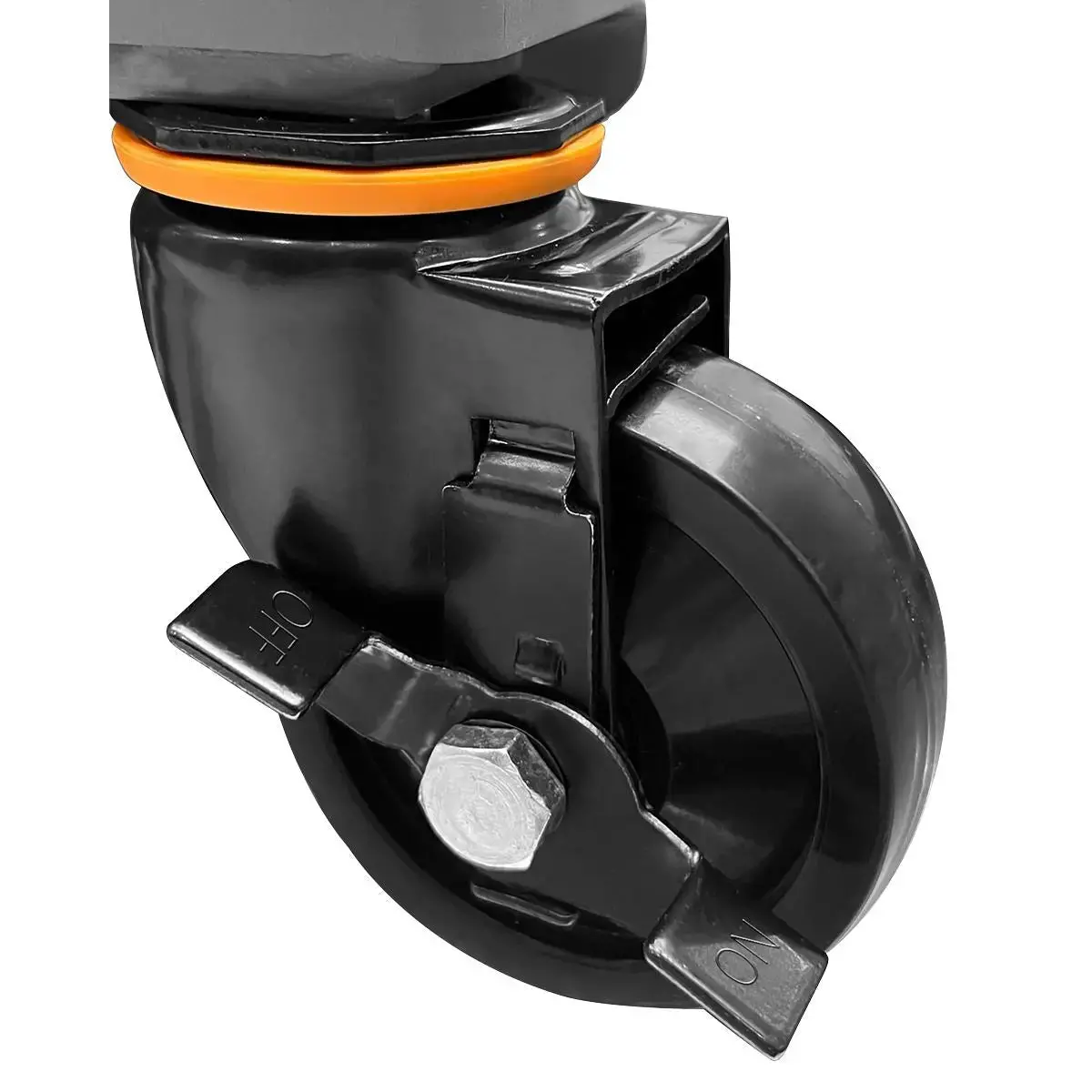

NON FLOOR MARKING WHEELS – Strong non-marking, nylon and fibreglass wheels front and rear. Rear castor wheels fitted with brakes. An additional wheel is also fitted for ease of movement when folded.
3 Year guarantee*.
This item is heavy. Extra assistance must be provided at the delivery point to help its safe delivery.
Specification:
- Model No PFC101S
- Brand: Viking
- Height Jib Down: n/a
- Height Legs Folded: 1550mm
- Height of Frame: 105mm
- Length Legs Extended: n/a
- Length of Jib Position 1: 960mm
- Length of Jib Position 2: 1053mm
- Length of Jib Position 3: 1152mm
- Length of Jib Position 4: 1250mm
- Length of Jib Position 5: 1350mm
- Length: 1600mm
- Lifting Capacity in Position 1: 1000kg
- Lifting Capacity in Position 2: 900kg
- Lifting Capacity in Position 3: 800kg
- Lifting Capacity in Position 4: 700kg
- Lifting Capacity in Position 5: 600kg
- Max. Lift Ht at Jib Position 1: 2080mm
- Max. Lift Ht at Jib Position 2: 2140mm
- Max. Lift Ht at Jib Position 3: 2190mm
- Max. Lift Ht at Jib Position 4: 2250mm
- Max. Lift Ht at Jib Position 5: 2300mm
- Nett Weight: 96kg
- Note: n/a
- Rear Width: 390mm
- Width Front Frame: 1129mm
- Width Inside Front Frame: 1025mm
Product Guarantee: 3 Years
Catalogue Page: Page 888
Downloadable Files:
- Instructions: View Here
- Material Safety Data Sheet: View Here
- Parts Diagram: View Here
