Description
Sealey Viking Floor Type Air/Hydraulic Press with Sliding Ram & Foot Pedal 100 Tonne

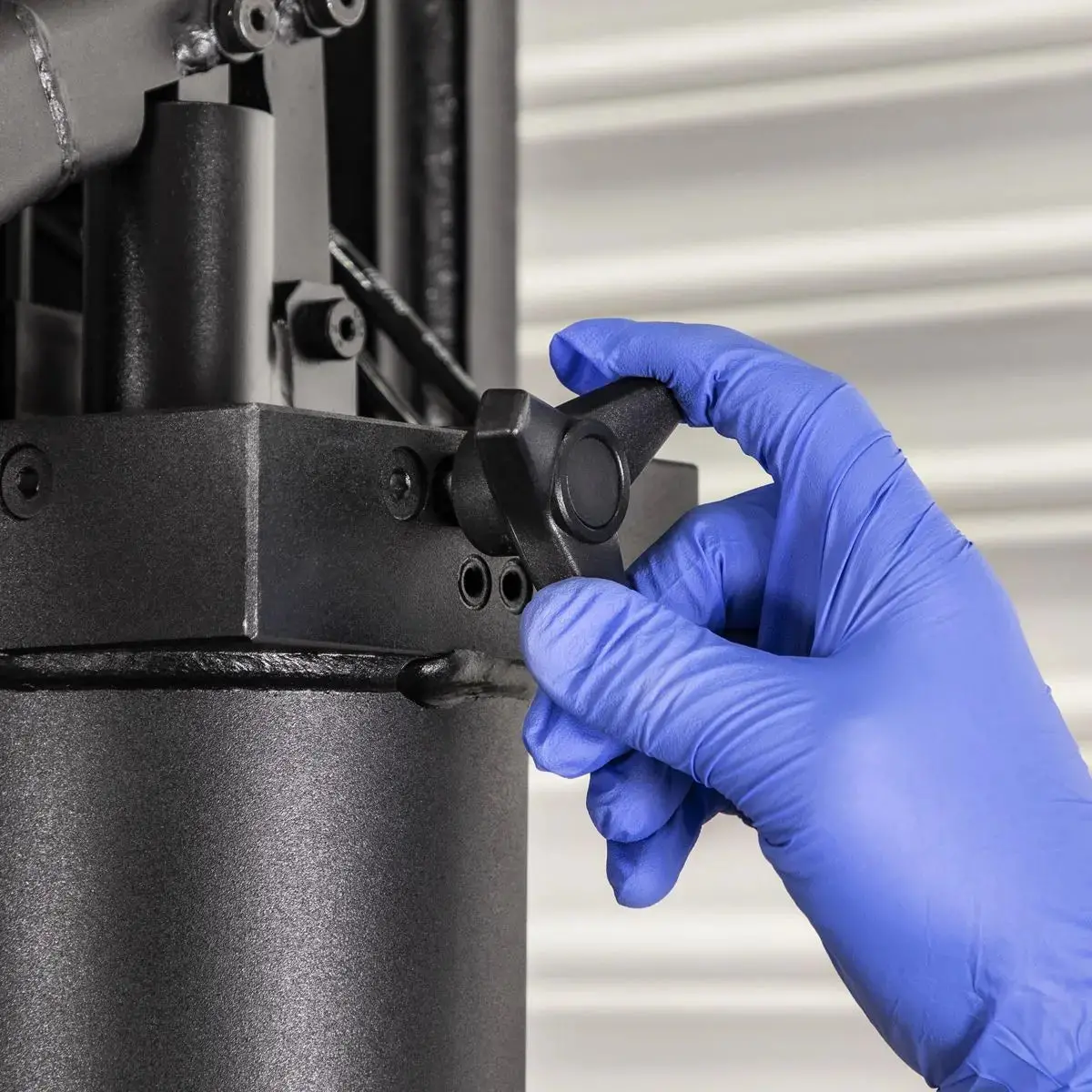

Heavy-duty steel frame construction with integral air motor powering hydraulic pump unit.
Adjustable work area with removable tray.
Sliding hydraulic ram assembly giving 360mm of lateral travel for off-centre pressing applications.
Frame head fitted with ram pressure gauge.
Winch assisted press table adjustment.
Storage for press pins included in frame (pins not included).
Supplied with flat pressing plate/V-blocks.
This item is heavy. Extra assistance must be provided at the delivery point to help its safe delivery.
A forklift must be available at the delivery point to unload this item.
5 Year guarantee*.
Specification:
- Model No PPF100S
- Air Consumption: 6.5cfm
- Bench or Floor Mounting: Floor
- Brand: Viking
- Capacity: 100 Tonne
- Gauge Included: Yes
- Lateral Ram Travel: 360mm
- Maximum Height – Ram to Table: 885mm
- Minimum Height – Ram to Table: 185mm
- Nett Weight: 682kg
- Operating Table Width: 850mm
- Overall Height: 1938mm
- Ram Diameter: Ø179mm
- Ram Stroke: 300mm
- Screw Extension: n/a
- Table Aperture: 324mm
- Type: Air/Hydraulic
- Working Table Depth: 364mm
- Working Table Width: 1090mm
- Working Table Width: 850mm
Product Guarantee: 5 Years
Catalogue Page: Page 901
Downloadable Files:
- Instructions: View Here
- Material Safety Data Sheet: View Here
- Parts Diagram: View Here
