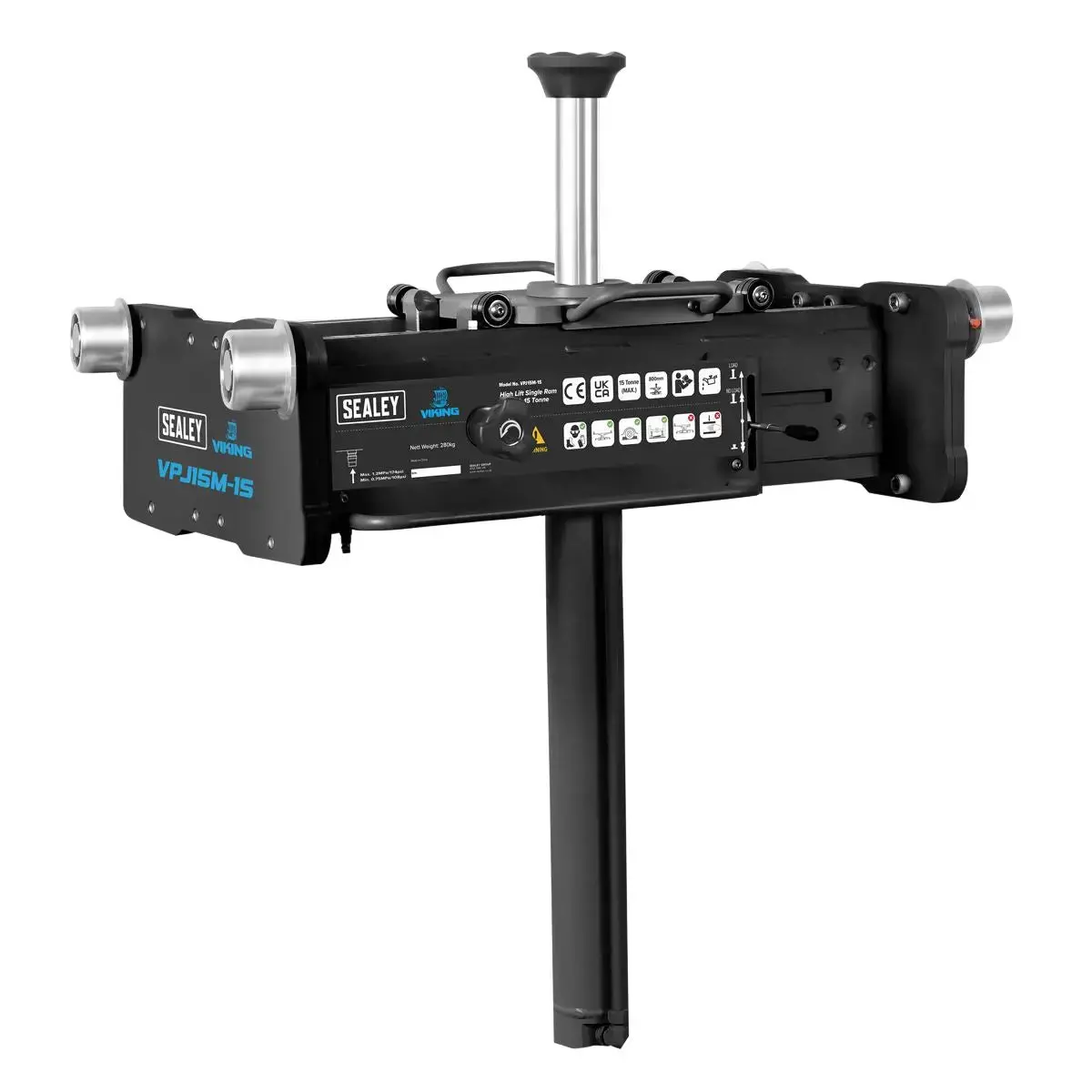

Sealey Viking Pit Jack 15 Tonne Single Ram High Lift
EASY GLIDE – Fitted with leaf spring support bearings for easy glide transversing the ram.
HIGH LIFT – Full 800mm lifting stroke for high axled vehicles.
PNEUMATIC CONTROL – Air operation takes the effort out of lifting heavy plant, tractors and commercial vehicles.
QUICK LIFT – Rocket lift feature brings the saddle into contact with the jacking point quickly and slows once under load for a controlled lift.
SAFE DESCENT – Fitted with deadman controls and a limited descent control valve.
ADJUSTABLE FIT – Manufactured to suit pit widths between 920 – 1220mm
CONVENIENCE – Large handle for moving the frame, air coupling and water separator and spare parts tray/tool tray with rubber mat insert.
3 YEAR GUARANTEE*.
Specification:
- Model No VPJ15M-1S
- Beam Lift: 800mm
- Brand: Viking
- Capacity: 15 Tonne
- Load Arm Reach: N/A
- Nett Weight: 280kg
- Optional Accessories: VPJ15MCBA – Single Ram Cross Beam Adaptor, VJP15M2CBA – Single Ram Cross Beam Adaptor Extendable, VPJ-VA – V-Adaptor, VJP-UA – U-Adaptor, VPJ-A7 – Extension For Pit Jacks 100mm, VPJ-A8 – Extension For Pit Jacks 200mm, VPJ15SS – Integrated Safety Stand.
- Support Arm Reach: N/A
Product Guarantee: 3 Years
Catalogue Page: Page 877
Downloadable Files:
- Instructions: View Here
- Material Safety Data Sheet: View Here
- Parts Diagram: View Here
