Description

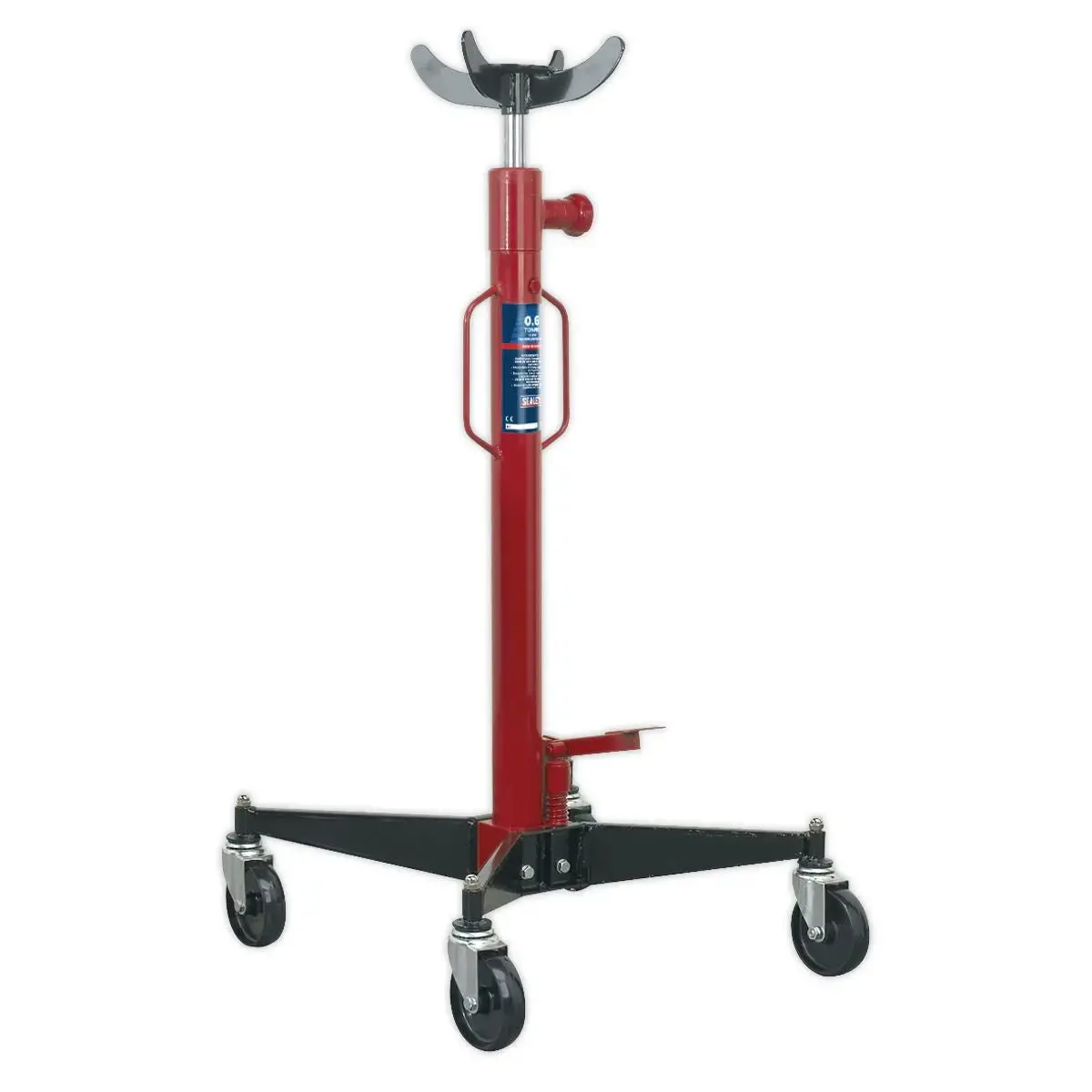

Sealey Viking Vertical Transmission Jack with Quick Lift 600kg

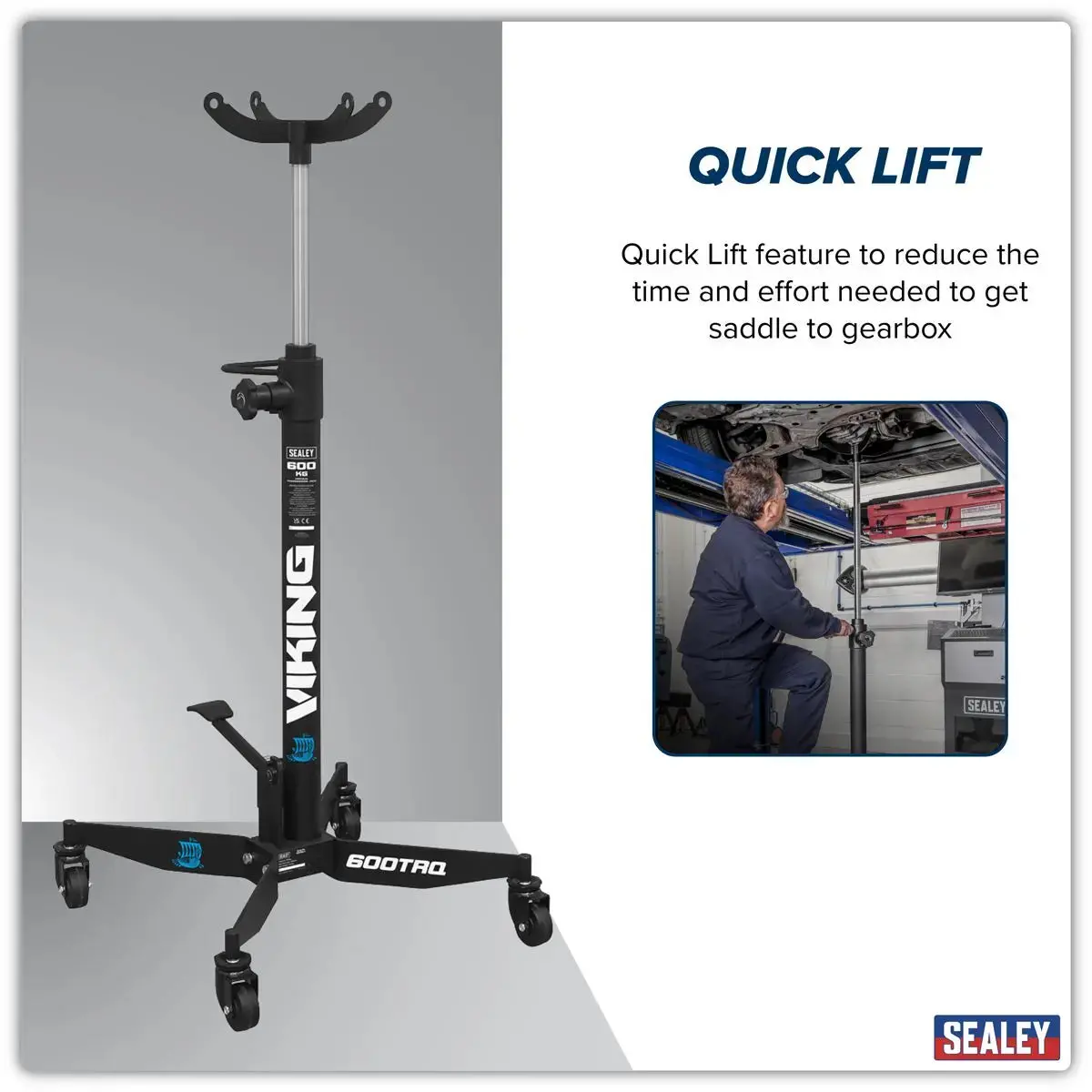

QUICK LIFT – reduced time and effort needed to get saddle to gearbox, only a maximum of 22 pumps needed to reach full height.
CONVENIENT – Single foot pedal operation keeps hands-free during lifting process.
SAFE – Spring loaded dead man’s safety release control reduces the risk of inadvertent lowering.
CONTROLLED – 2-Way hydraulic unit ensures that the saddle lowers at a controlled speed at all times, even without load.
HEAVY DUTY – Hydraulic unit larger than the economy models for improved performance and durability.
UNIVERSAL – Saddle is reversible allowing a jack pad to be fitted to support items other than transmissions.
MANEUVERABLE – Castors and side handle make the units easily positioned.
SUITABLE – for use with optional Adjustable Gearbox Support – Model No. ADT3.
3 YEAR GUARANTEE*.
Specification:
- Model No 600TRQ
- Base Size: 600 x 600mm
- Brand: Viking
- Capacity: 600kg
- Fixed/Adjustable Saddle: Fixed
- Maximum Saddle Height: 1986mm
- Minimum Saddle Height: 1146mm
- Nett Weight: 34.8kg
- Optional Accessories: Adjustable Gearbox Supports – ADT3, ADT7
- Pump Strokes to Maximum Height: 22
- Ram Extensions: 840mm
Product Guarantee: 3 Years
Catalogue Page: Page 879
Downloadable Files:
- Instructions: View Here
- Material Safety Data Sheet: View Here
- Parts Diagram: View Here
