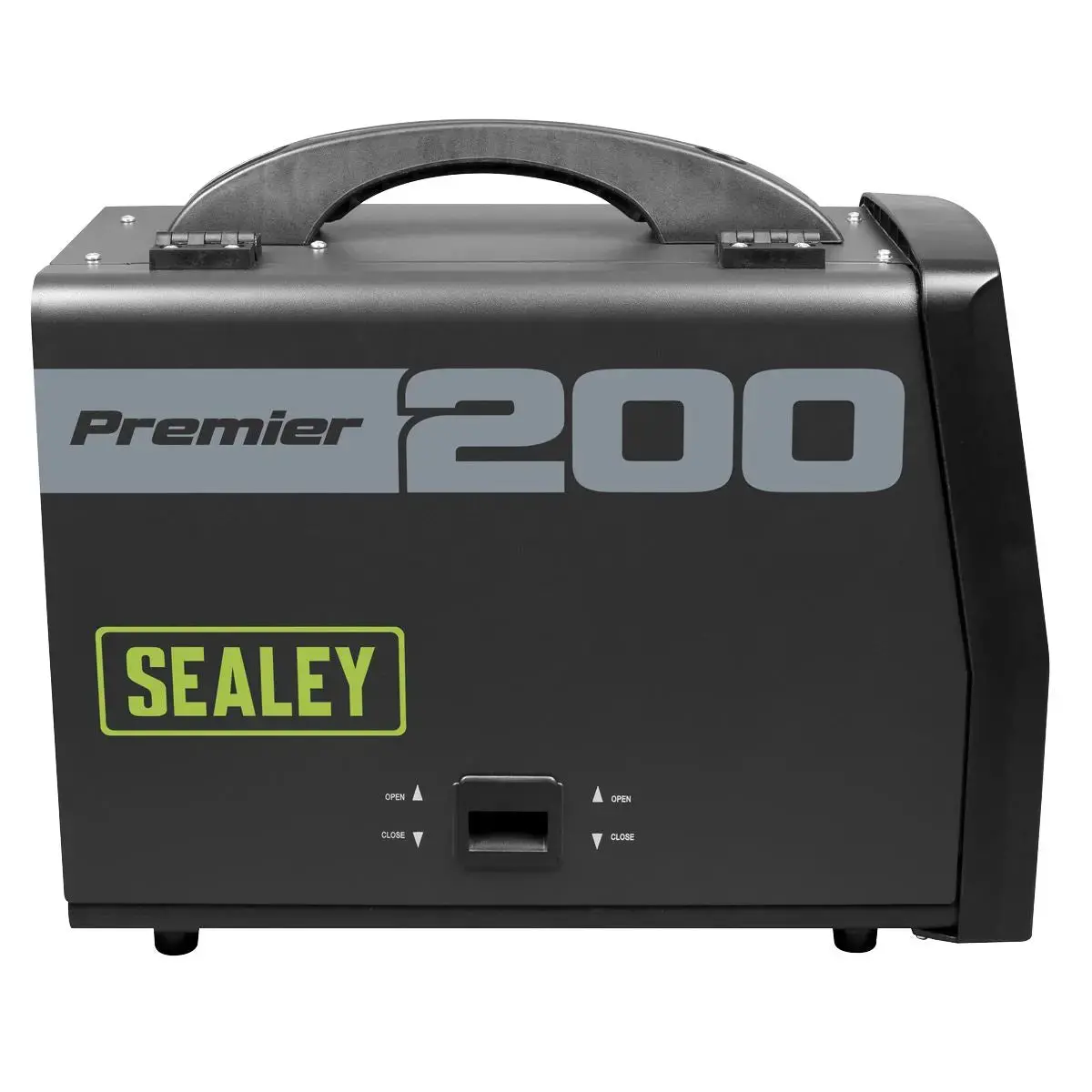

Sealey Premier MIG, TIG & MMA Inverter Welder with LCD Screen 200A
3-in-1 WELDER – Uses state-of-the-art inverter technology to achieve MIG/TIG/MMA (Arc).
INVERTER TECHNOLOGY – Offers many advantages over traditional transformer type welders, giving greater duty cycles and more power factor efficiency.
FAN COOLED – DC power supply for MIG and TIG, suitable to weld steel, stainless steel, copper, nickel, titanium, and their alloys.
ALSO SUITABLE FOR ARC WELDING – A variety of rods including rutile, basic and stainless from Ø1.6 to Ø4mm.
FULLY FUNCTIONAL – LCD front panel with easy to follow set-up.
UP TO FOUR SET UPS – Can be saved on the machine for fast loading.
SWITCHABLE – Between MIG, TIG* or MMA* welding modes (*optional torches required).
3 YEAR GUARANTEE*.
Specification:
- Model No INVMIG200LCD
- Brand: Sealey Premier
- Nett Weight: 15kg (power source only)
- Duty Cycle:
- MIG: 20% @ 200A, 100% @ 89A
- TIG: 20% @ 180A, 100% @ 80A
- MMA (Arc) 20% @ 180A, 100% @ 80A
- Wire Capacity: 5kg
- Electrode Capacity: 1.6 – 4mm
- Absorbed Power: 8.6kW
- Supply: 230V **
- Insulation: IP21S
- Protection: F
- IP Rating:
- Weight: 17kg

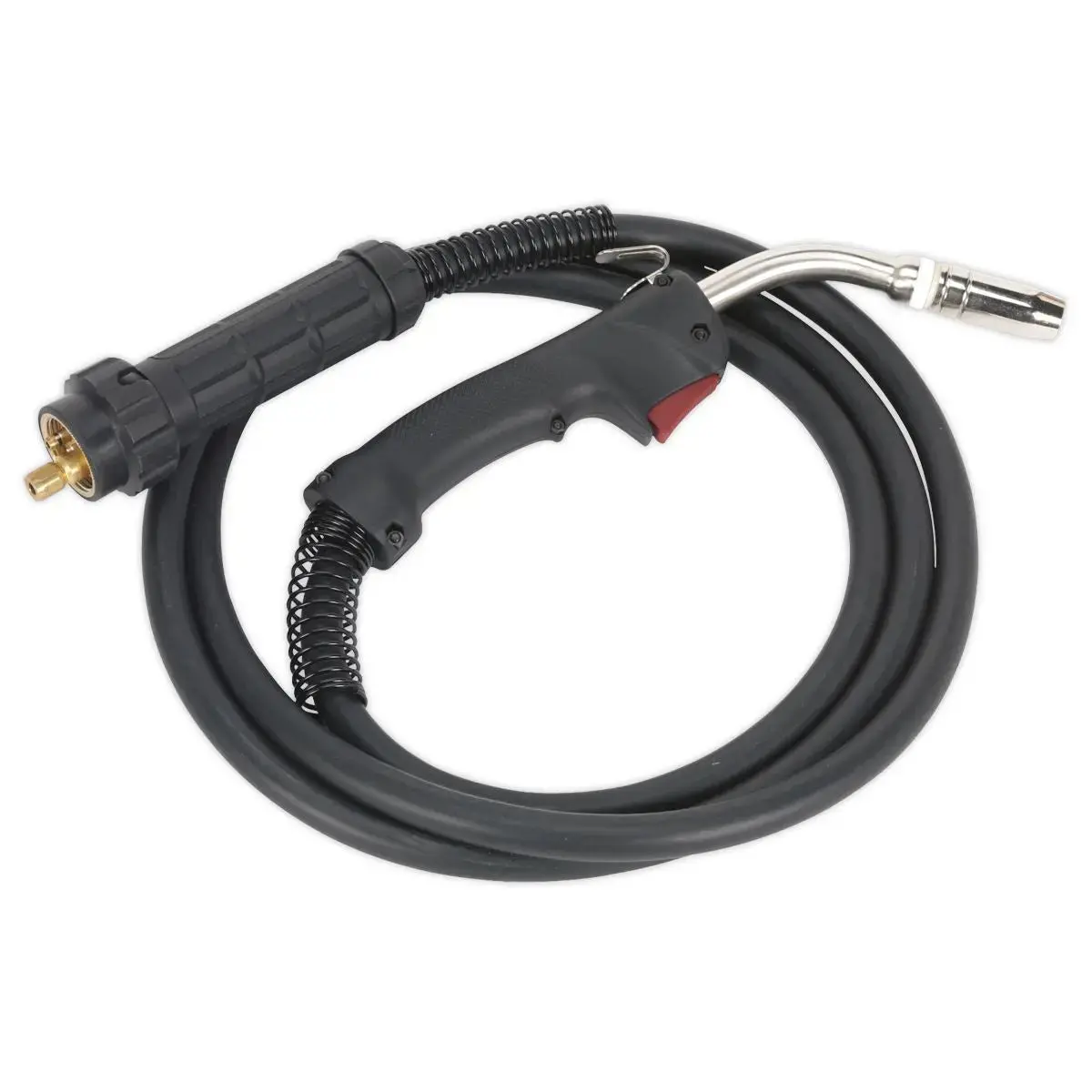

- MIG Torch: Euro Non-Live BINZEL® MB15*
- MMA Accessory Kit (Optional) MMA01
- TIG Accessory Kit (Optional) TIG10S
- Note: * included as standard** To acheive maximum power a 32A supply may be required.
({IF[“Note: * included as standard** To acheive maximum power a 32A supply may be required.”!=””]})
({ENDIF})
Product Guarantee: 3 Years
Catalogue Page: Page 995
Downloadable Files:
- Instructions: View Here
- Parts Diagram: View Here
